Product Specifications
Manufacturer Part Number | 02656536 |
Cutting Diameter (mm) | 6.35mm |
Connection Diameter Machine Side (mm) | 8.00mm |
Shank Diameter (mm) | 8.00mm |
Chip Flute Length (mm) | 137.00mm |
Functional Length Secondary (mm) | 141.00mm |
Shank Length (mm) | 36.00mm |
Usable Length (mm) | 120.00mm |
Overall Length (mm) | 177.00mm |
Corner Chamfer Width (mm) | 0.10mm |
Tool Cutting Edge Angle (Degree) | 68 Degree |
Corner Chamfer Angle (Degree) | 34 Degree |
Flute Helix Angle (Degree) | 30 Degree |
Flute Helix Hand | Right Hand |
Coolant Entry Style Code | 4 |
Coolant Supply Property | 1 |
Coolant Exit Style Code | 4 |
Shank Type | Cylindrical |
Material | Carbide |

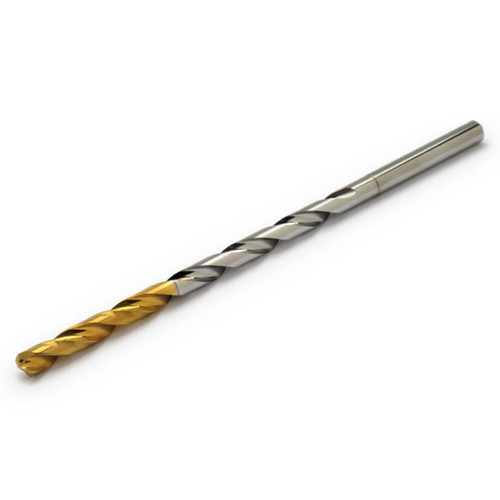

Product Type | Extra Long Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Material:
Carbide
Overall Length (Inch):
6-92/95"
Overall Length (Decimal Inch):
6.9685"
Overall Length (mm):
177.00mm
Flute Length (Inch):
5-37/4"
Flute Length (Decimal Inch):
5.3937"
Flute Length (mm):
137.00mm
Drill Point Angle:
136 Degree
Shank Type:
Cylindrical
interval quantity:
1
