Product Specifications

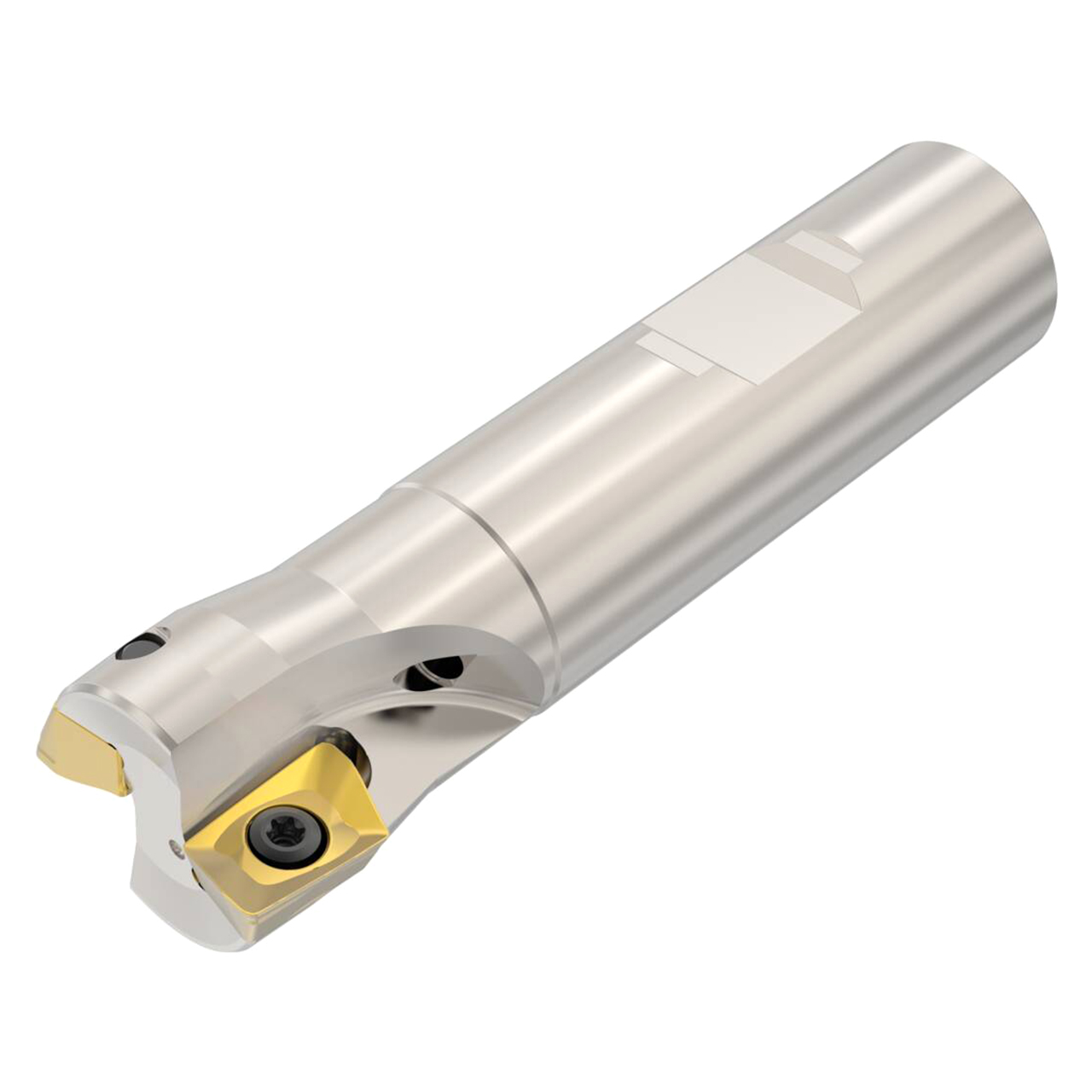

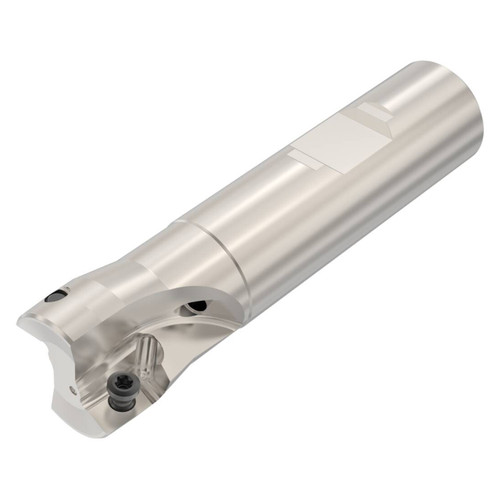

| Manufacturer Part Number | 02688951 |
| Cutting Diameter (Decimal Inch) | 0.875" |
| Cutting Diameter (mm) | 22.23mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.750" |
| Connection Diameter Machine Side (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (mm) | 19.05mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 1.654" |
| Maximum Helical Interpolation Hole Diameter (mm) | 42.00mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 1.240" |
| Minimum Helical Interpolation Hole Diameter (mm) | 31.50mm |
| Functional Length (Decimal Inch) | 2.362" |
| Functional Length (mm) | 60.00mm |
| Protruding Length (Decimal Inch) | 1.409" |
| Protruding Length (mm) | 35.80mm |
| Shank Length (Decimal Inch) | 2.205" |
| Shank Length (mm) | 56.00mm |
| Overall Length (Decimal Inch) | 3.378" |
| Overall Length (mm) | 85.80mm |
| Maximum Depth of Cut (mm) | 11.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.433" |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -10.3 Degree |
| Rake Radial Angle (Degree) | -10.3 Degree |
| Rake Orthogonal Angle (Degree) | -10.3 Degree |
| Axial Rake Angle (Degree) | 4.1 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Ramping Angle (Degree) | 6 Degree |
| Maximum Rotational Speed (rpm) | 22000 rpm |
| Shank Type | Weldon |
| Product Type | Indexable Square-Shoulder End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
7/8"
Cutting Diameter (Decimal Inch):
0.8752"
Cutting Diameter (mm):
22.23mm
Shank Type:
Weldon
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Overall Length (Inch):
3-31/82"
Overall Length (Decimal Inch):
3.3780"
Overall Length (mm):
85.80mm
