Product Specifications
| Manufacturer Part Number | 02694997 |
| Cutting Diameter (Decimal Inch) | 6.000" |
| Cutting Diameter (mm) | 152.40mm |
| Connection Bore Diameter (Decimal Inch) | 2.000" |
| Connection Bore Diameter (mm) | 50.80mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 4.331" |
| Contact Surface Diameter Machine Side (mm) | 110.00mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 11.89" |
| Maximum Helical Interpolation Hole Diameter (mm) | 302.00mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 11.280" |
| Minimum Helical Interpolation Hole Diameter (mm) | 286.50mm |
| Functional Length (Decimal Inch) | 2.480" |
| Functional Length (mm) | 63.00mm |
| Maximum Depth of Cut (mm) | 17.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.669" |
| Depth of Key Way (Decimal Inch) | 0.382" |
| Depth of Key Way (mm) | 9.70mm |
| Keyway Width (Decimal Inch) | 0.756" |
| Keyway Width (mm) | 19.20mm |
| Cutting Pitch Differential | 1 |
| Cutting Pitch Density | Normal |
| Rake Radial Angle (Degree) | -4 Degree |
| Rake Radial Angle (Degree) | -4 Degree |
| Rake Orthogonal Angle (Degree) | -4 Degree |
| Axial Rake Angle (Degree) | 8 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Ramping Angle (Degree) | 0.5 Degree |
| Maximum Rotational Speed (rpm) | 5000 rpm |
| Shank Type | Arbor |

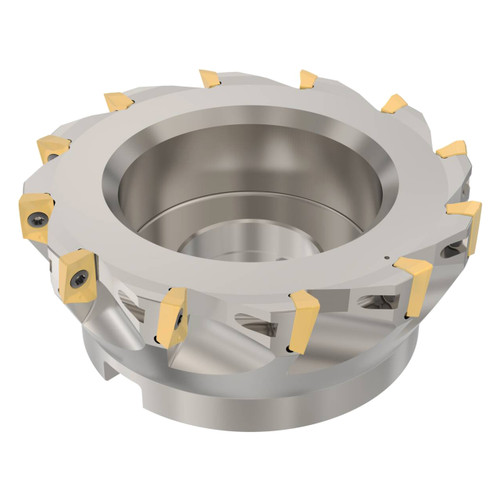

| Product Type | Indexable Square-Shoulder Face Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Maximum Depth of Cut (Inch):
2/3"
Maximum Depth of Cut (Decimal Inch):
0.6693"
Maximum Depth of Cut (mm):
17.00mm
