Product Specifications
| Manufacturer Part Number | 02706254 |
| Body Diameter (Decimal Inch) | 1.496" |
| Body Diameter (mm) | 38.00mm |
| Body Diameter 1 (Decimal Inch) | 1.496" |
| Body Diameter 1 (mm) | 38.00mm |
| Connection Diameter Workpiece Side (Decimal Inch) | 0.630" |
| Connection Diameter Workpiece Side (mm) | 16.00mm |
| Shank Diameter (Decimal Inch) | 0.630" |
| Shank Diameter (mm) | 16.00mm |
| Body Length (Decimal Inch) | 5.276" |
| Body Length (mm) | 134.00mm |
| Functional Length (Decimal Inch) | 6.299" |
| Functional Length (mm) | 160.00mm |
| Clamping Length (Decimal Inch) | 0.669" |
| Clamping Length (mm) | 17.00mm |
| Overall Length (Decimal Inch) | 8.228" |
| Overall Length (mm) | 209.00mm |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 8000 rpm |

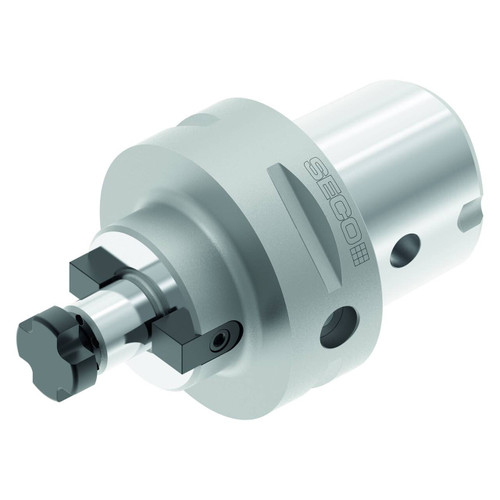

| Product Type | Shell Mill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
interval quantity:
1
