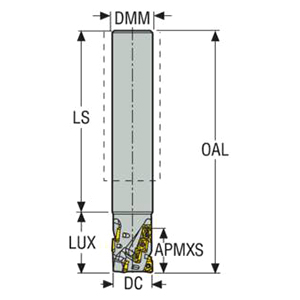

| Manufacturer Part Number | 02709311 |
| Cutting Diameter (mm) | 12.00mm |
| Connection Diameter Machine Side (mm) | 16.00mm |
| Shank Diameter (mm) | 16.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 23.25mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 18.48mm |
| Protruding Length (mm) | 53.00mm |
| Shank Length (mm) | 66.00mm |
| Overall Length (mm) | 98.00mm |
| Maximum Depth of Cut (mm) | 10.00mm |
| Cutting Pitch Density | Normal |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | -9.3 Degree |
| Rake Radial Angle (Degree) | -9.3 Degree |
| Rake Orthogonal Angle (Degree) | -9.3 Degree |
| Axial Rake Angle (Degree) | 4 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Number of Flute | 2 |
| Maximum Ramping Angle (Degree) | 6.5 Degree |
| Maximum Rotational Speed (rpm) | 54400 rpm |
| Insert Shape Code | X |
| Shank Type | Cylindrical |
| Product Type | Indexable Square Shoulder Mill |
