Product Specifications

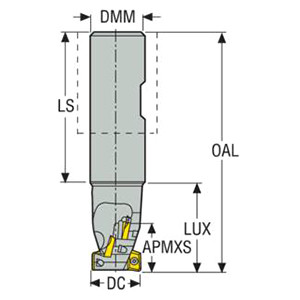

| Manufacturer Part Number | 02709317 |
| Cutting Diameter (mm) | 20.00mm |
| Connection Diameter Machine Side (mm) | 20.00mm |
| Shank Diameter (mm) | 20.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 39.25mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 34.48mm |
| Protruding Length (mm) | 70.00mm |
| Shank Length (mm) | 85.00mm |
| Overall Length (mm) | 120.00mm |
| Maximum Depth of Cut (mm) | 25.00mm |
| Cutting Pitch Density | Normal |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | -6.5 Degree |
| Rake Radial Angle (Degree) | -6.5 Degree |
| Rake Orthogonal Angle (Degree) | -6.5 Degree |
| Axial Rake Angle (Degree) | 8 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Number of Flute | 3 |
| Maximum Ramping Angle (Degree) | 2.5 Degree |
| Maximum Rotational Speed (rpm) | 44000 rpm |
| Insert Shape Code | X |
| Shank Type | Cylindrical |
| Product Type | Indexable Square Shoulder Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
37/47"
Cutting Diameter (Decimal Inch):
0.7874"
Cutting Diameter (mm):
20.00mm
Maximum Depth of Cut (Inch):
63/64"
Maximum Depth of Cut (Decimal Inch):
0.9843"
Maximum Depth of Cut (mm):
25.00mm
