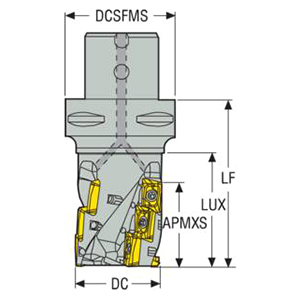

Product Specifications
| Manufacturer Part Number | 02717924 |
| Cutting Diameter (mm) | 66.00mm |
| Contact Surface Diameter Machine Side (mm) | 63.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 130.25mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 119.12mm |
| Functional Length (mm) | 81.00mm |
| Overall Length (mm) | 119.00mm |
| Maximum Depth of Cut (mm) | 44.00mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | -6.4 Degree |
| Rake Radial Angle (Degree) | -6.4 Degree |
| Rake Orthogonal Angle (Degree) | -6.4 Degree |
| Axial Rake Angle (Degree) | 8 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Number of Flute | 5 |
| Maximum Ramping Angle (Degree) | 1 Degree |
| Maximum Rotational Speed (rpm) | 12000 rpm |
| Insert Shape Code | X |
| Shank Type | Seco-Capto |
| Product Type | Indexable Square Shoulder Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
2-3/5"
Cutting Diameter (Decimal Inch):
2.5984"
Cutting Diameter (mm):
66.00mm
Maximum Depth of Cut (Inch):
1-52/71"
Maximum Depth of Cut (Decimal Inch):
1.7323"
Maximum Depth of Cut (mm):
44.00mm
