Product Specifications

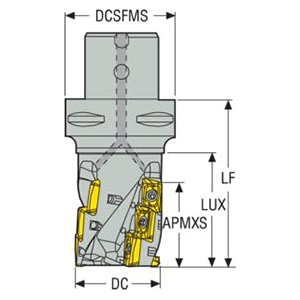

| Manufacturer Part Number | 02721716 |
| Cutting Diameter (Decimal Inch) | 2.500" |
| Cutting Diameter (mm) | 63.50mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.480" |
| Contact Surface Diameter Machine Side (mm) | 63.00mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 4.902" |
| Maximum Helical Interpolation Hole Diameter (mm) | 124.50mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 4.276" |
| Minimum Helical Interpolation Hole Diameter (mm) | 108.60mm |
| Functional Length (Decimal Inch) | 3.898" |
| Functional Length (mm) | 99.00mm |
| Overall Length (Decimal Inch) | 5.394" |
| Overall Length (mm) | 137.00mm |
| Maximum Depth of Cut (mm) | 61.20mm |
| Maximum Depth of Cut (Decimal Inch) | 2.409" |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | -4 Degree |
| Rake Radial Angle (Degree) | -4 Degree |
| Rake Orthogonal Angle (Degree) | -4 Degree |
| Axial Rake Angle (Degree) | 6.5 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Number of Flute | 4 |
| Maximum Ramping Angle (Degree) | 2 Degree |
| Maximum Rotational Speed (rpm) | 7900 rpm |
| Insert Shape Code | X |
| Shank Type | Seco-Capto |
| Product Type | Indexable Square Shoulder Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
2-1/2"
Cutting Diameter (Decimal Inch):
2.5000"
Cutting Diameter (mm):
63.50mm
Maximum Depth of Cut (Inch):
2-9/22"
Maximum Depth of Cut (Decimal Inch):
2.4094"
Maximum Depth of Cut (mm):
61.20mm
