Product Specifications

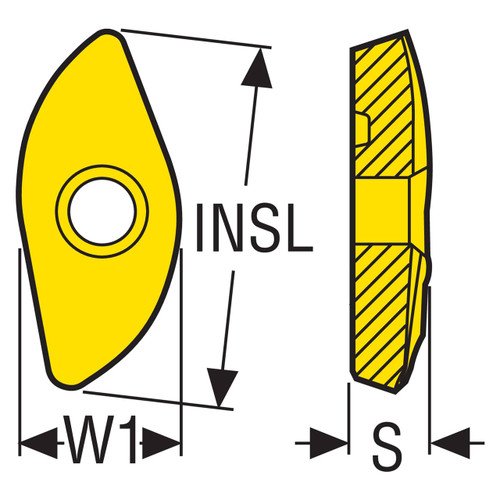

| Manufacturer Part Number | 02744576 |
| Fixing Hole Diameter (mm) | 4.50mm |
| Inscribed Circle Diameter (mm) | 11.91mm |
| Insert Length (mm) | 28.70mm |
| Corner Radius (mm) | 15.00mm |
| Insert Thickness (mm) | 5.99mm |
| Cutting Edge Count | 2 |
| Clearance Angle Major (Degree) | 15 Degree |
| Insert Rake Angle (Degree) | -2 Degree |
| Insert Hand | Right Hand |
| Cutting Geometry Type | M |
| Cutting Geometry Type Technical | M08 |
| Pocket Seat Code of The Cutter | 218.20-150 |
| Insert Size And Shape | 218.20-150 |
| Insert Shape Code | 218.20 |
| Material | Carbide |
| Product Type | Milling Insert |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Material:
Carbide
Width (Inch):
15/32"
Width (Decimal Inch):
0.4689"
Width (mm):
11.91mm
Length (Decimal Inch):
1.1299"
Length (mm):
28.70mm
Inscribed Circle (Inch):
15/32"
Inscribed Circle (Decimal Inch):
0.4689"
Inscribed Circle (mm):
11.91mm
Thickness (Decimal Inch):
0.2358"
Thickness (mm):
5.99mm
interval quantity:
10
