Product Specifications

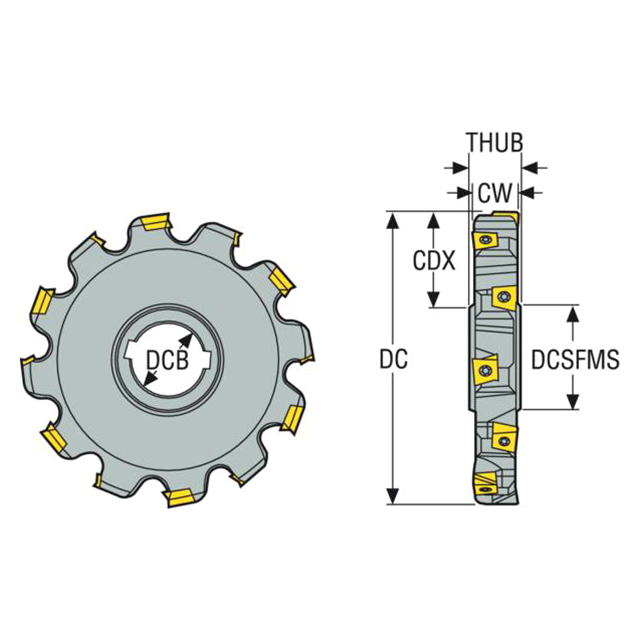

| Manufacturer Part Number | 02788028 |
| Cutting Diameter (mm) | 200.00mm |
| Connection Bore Diameter (mm) | 50.00mm |
| Contact Surface Diameter Machine Side (mm) | 71.00mm |
| Functional Length (mm) | 25.00mm |
| Keyway Width (mm) | 12.00mm |
| Cutting Width (mm) | 25.00mm |
| Maximum Depth of Cut (mm) | 25.00mm |
| Maximum Cutting Depth (mm) | 62.70mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -9 Degree |
| Cutting Direction | Neutral |
| Maximum Rotational Speed (rpm) | 3900 rpm |
| Cutting Pitch Density | Normal |
| Pocket Seat Code of The Cutter | XNHQ1407 |
| Cutting Item Material Type | Steel |
| Shank Type | Arbor hole |
| Product Type | Indexable Slotting Cutter |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov

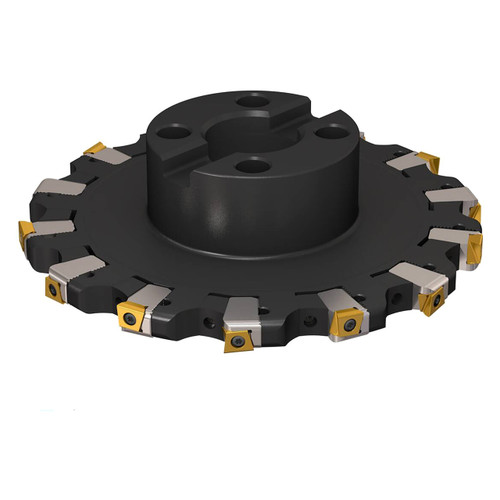

Related Products
