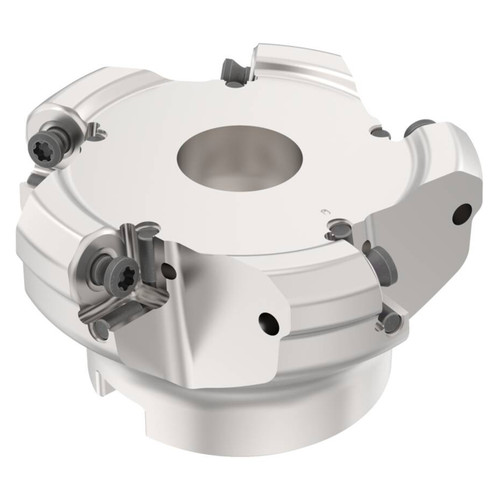

| Manufacturer Part Number | 02810096 |
| Cutting Diameter (Decimal Inch) | 1.969" |
| Cutting Diameter (mm) | 50.00mm |
| Connection Bore Diameter (Decimal Inch) | 0.750" |
| Connection Bore Diameter (mm) | 19.05mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.850" |
| Contact Surface Diameter Machine Side (mm) | 47.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 2.297" |
| Maximum Cutting Diameter (mm) | 58.35mm |
| Functional Length (Decimal Inch) | 1.575" |
| Functional Length (mm) | 40.00mm |
| Maximum Depth of Cut (mm) | 3.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.118" |
| Depth of Key Way (Decimal Inch) | 0.193" |
| Depth of Key Way (mm) | 4.90mm |
| Keyway Width (Decimal Inch) | 0.321" |
| Keyway Width (mm) | 8.15mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Differential | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 2 |
| Rake Radial Angle (Degree) | -8 Degree |
| Rake Radial Angle (Degree) | -8 Degree |
| Rake Orthogonal Angle (Degree) | -11 Degree |
| Axial Rake Angle (Degree) | -8 Degree |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 40 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 40 Degree |
| Maximum Rotational Speed (rpm) | 14400 rpm |
| Insert Shape Code | O |
| Shank Type | Arbor |
| Product Type | Indexable Face Mill Cutter |
