Product Specifications
| Manufacturer Part Number | 02827279 |
| Body Diameter 1 (Decimal Inch) | 1.575" |
| Body Diameter 1 (mm) | 40.00mm |
| Body Diameter 2 (Decimal Inch) | 1.575" |
| Body Diameter 2 (mm) | 40.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.039" |
| Minimum Connection Bore Diameter (mm) | 1.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.630" |
| Maximum Connection Bore Diameter (mm) | 16.00mm |
| Body Length (Decimal Inch) | 2.677" |
| Body Length (mm) | 68.00mm |
| Body Length 1 (Decimal Inch) | 2.559" |
| Body Length 1 (mm) | 65.00mm |
| Functional Length (Decimal Inch) | 2.047" |
| Functional Length (mm) | 52.00mm |
| Minimum Functional Length (Decimal Inch) | 1.339" |
| Protruding Length (Decimal Inch) | 3.543" |
| Protruding Length (mm) | 90.00mm |
| Overall Length (Decimal Inch) | 5.039" |
| Overall Length (mm) | 128.00mm |
| Data Chip Provision | 1 |

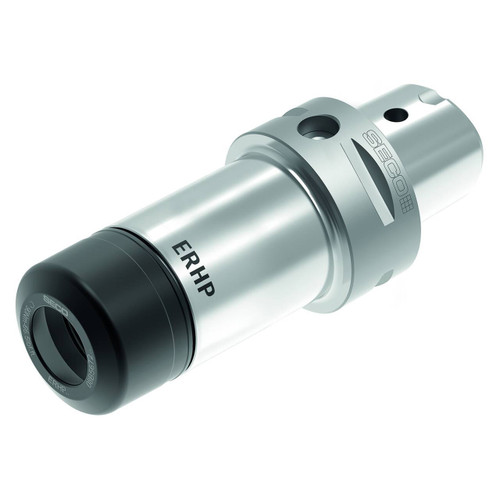

| Product Type | Collet Chuck |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
1/2"";Inscribed Circle (Decimal Inch)=0.5000""""
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"";Thickness (Decimal Inch)=0.1870""""
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/64"";Corner Radius (Decimal Inch)=0.0080""""
Corner Radius (mm):
0.20mm
interval quantity:
1
