| Manufacturer Part Number | 02827443 |
| Cutting Diameter (mm) | 200.00mm |
| Connection Bore Diameter (mm) | 50.00mm |
| Contact Surface Diameter Machine Side (mm) | 69.00mm |
| Functional Length (mm) | 29.00mm |
| Keyway Width (mm) | 12.00mm |
| Maximum Depth of Cut (mm) | 16.00mm |
| Maximum Cutting Depth (mm) | 63.30mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -8 Degree |
| Cutting Direction | Neutral |
| Maximum Rotational Speed (rpm) | 4100 rpm |
| Cutting Pitch Density | Normal |
| Pocket Seat Code of The Cutter | XNHQ1707 |
| Cutting Item Material Type | Steel |
| Shank Type | Arbor hole |

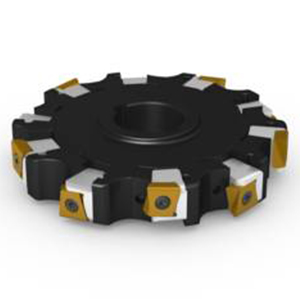

| Product Type | Indexable Slotting Cutter |
