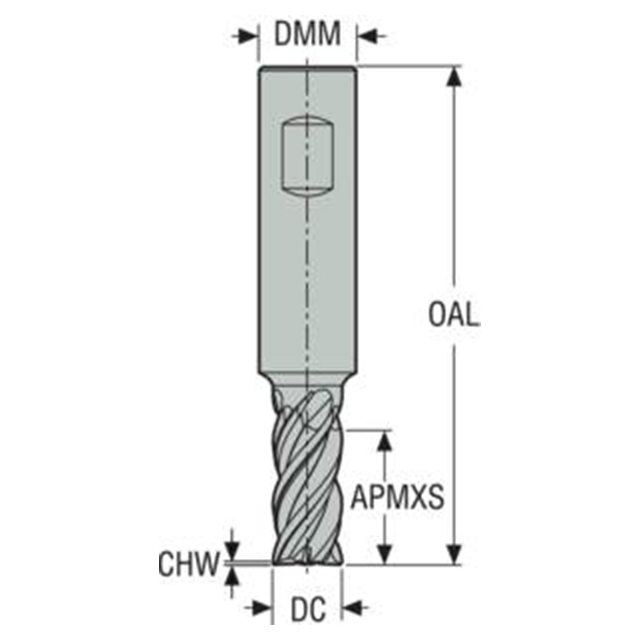

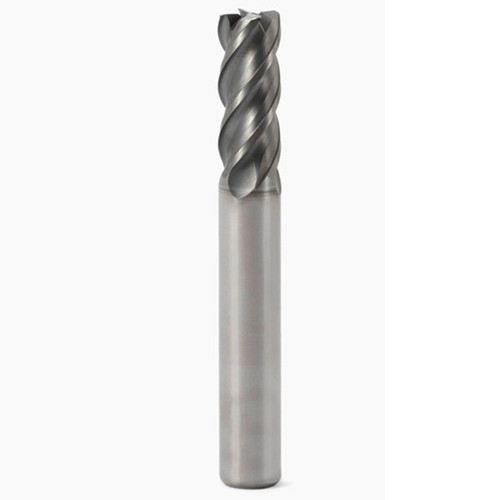

| Manufacturer Part Number | 02828266 |
| Cutting Diameter (mm) | 6.00mm |
| Cutting Diameter 1 (mm) | 6.00mm |
| Connection Diameter Machine Side (mm) | 6.00mm |
| Shank Diameter (mm) | 6.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 11.58mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 7.80mm |
| Overall Length (mm) | 55.00mm |
| Cutting Edge Effective Length (mm) | 14.00mm |
| Insert Width (Decimal Inch) | 0.295" |
| Insert Width (mm) | 7.50mm |
| Maximum Depth of Cut (mm) | 14.00mm |
| Corner Radius (mm) | 0.20mm |
| Shank Type | Weldon |
| Center Cutting Capability | Yes |
| Cutting Edge Count | 4 |
| Cutting Geometry Type | JHP951 |
| Cutting Geometry Type Technical | JHP951 |
| Face Cutting Edge Count | 4 |
| Flute Helix Angle (Degree) | 40 Degree |
| Flute Helix Direction | Right |
| Rake Radial Angle (Degree) | 5 Degree |
| Axial Rake Angle (Degree) | 40 Degree |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | No |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Number of Flute | 4 |
| Material | Carbide |
| Coating | SIRON-A |
| Product Type | Corner Radius End Mill |
