Product Specifications
| Manufacturer Part Number | 02829813 |
| Cutting Diameter (mm) | 22.00mm |
| Connection Diameter Machine Side (mm) | 25.00mm |
| Shank Diameter (mm) | 25.00mm |
| Functional Length (mm) | 69.00mm |
| Protruding Length (mm) | 45.00mm |
| Shank Length (mm) | 71.00mm |
| Overall Length (mm) | 101.00mm |
| Maximum Depth of Cut (mm) | 8.00mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Differential | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -24.5 Degree |
| Rake Radial Angle (Degree) | -24.5 Degree |
| Rake Orthogonal Angle (Degree) | -24.5 Degree |
| Axial Rake Angle (Degree) | -5.25 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Rotational Speed (rpm) | 17600 rpm |
| Shank Type | Weldon |

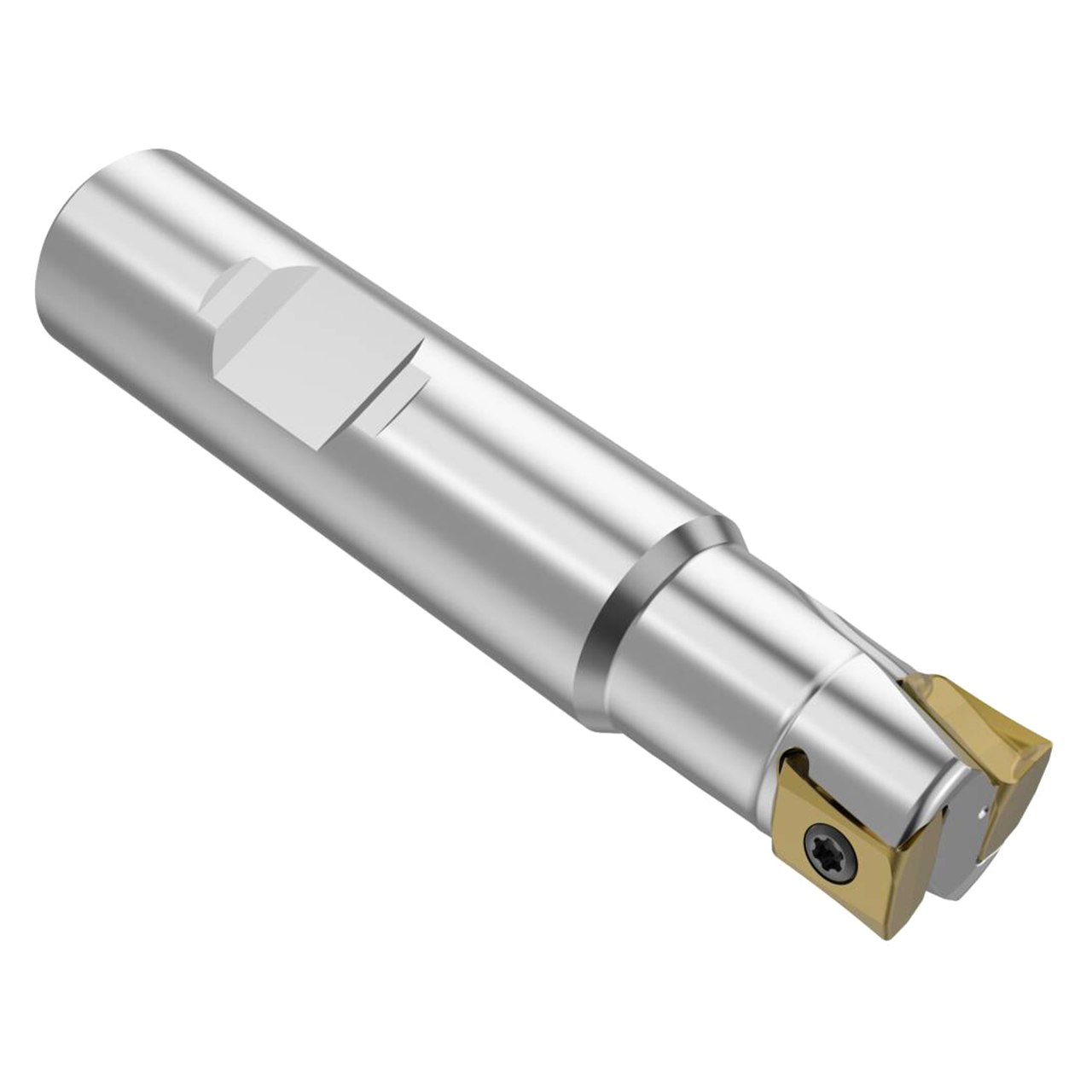

| Product Type | Indexable Square-Shoulder Face Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
13/15"
Cutting Diameter (Decimal Inch):
0.8661"
Cutting Diameter (mm):
22.00mm
Maximum Depth of Cut (Inch):
23/73"
Maximum Depth of Cut (Decimal Inch):
0.3150"
Maximum Depth of Cut (mm):
8.00mm
