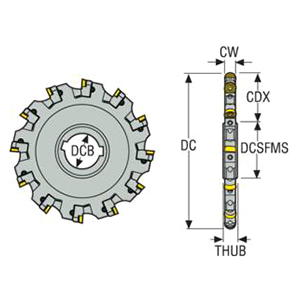

Seco Tools 02834709 | 335.18-06.00-0506N-R4 154.40mm Diameter x 11.94mm Functional Length x 90 Degree Cutting Edge Angle Indexable Slotting Cutter

$2,512.30
Brand:
Seco Tools
Cutting Width (Inch):
8"
Cutting Width (Decimal Inch):
0.3150"
Cutting Width (mm):
8.00mm
Maximum Depth of Cut (Inch):
37/94"
Maximum Depth of Cut (Decimal Inch):
0.3937"
Maximum Depth of Cut (mm):
10.00mm
Cutter Diameter (Inch):
154-2/5"
Cutter Diameter (Decimal Inch):
6.0787"
Cutter Diameter (mm):
154.40mm
interval quantity:
1
SKU:
23282110
Weight:
1.90 LBS
Shipping:
Free Shipping
Seco Tools 02834709 | 335.18-06.00-0506N-R4 154.40mm Diameter x 11.94mm Functional Length x 90 Degree Cutting Edge Angle Indexable Slotting Cutter

Product Specifications
Manufacturer Part Number02834709
Cutting Diameter (Decimal Inch)6.079"
Cutting Diameter (mm)154.40mm
Connection Bore Diameter (Decimal Inch)1.500"
Connection Bore Diameter (mm)38.10mm
Maximum Cutting Diameter (Decimal Inch)6.079"
Maximum Cutting Diameter (mm)154.40mm
Contact Surface Diameter Machine Side (Decimal Inch)2.252"
Contact Surface Diameter Machine Side (mm)57.20mm
Functional Length (Decimal Inch)0.470"
Functional Length (mm)11.94mm
Keyway Width (Decimal Inch)0.375"
Keyway Width (mm)9.52mm
Cutting Width (Decimal Inch)0.315"
Cutting Width (mm)8.00mm
Minimum Cutting Width (Decimal Inch)0.315"
Minimum Cutting Width (mm)8.00mm
Maximum Cutting Width (Decimal Inch)0.394"
Maximum Depth of Cut (Decimal Inch)0.394"
Maximum Depth of Cut (mm)10.00mm
Maximum Cutting Depth (Decimal Inch)1.772"
Maximum Cutting Depth (mm)45.00mm
Tool Cutting Edge Angle (Degree)90 Degree
Tool Cutting Edge Angle In Feed Direction Side (Degree)90 Degree
Cutting DirectionNeutral
Maximum Rotational Speed (rpm)7500 rpm
Cutting Pitch DensityNormal
Pocket Seat Code of The CutterRD..0803
Cutting Item Material TypeSteel
Shank TypeArbor hole
Product TypeIndexable Slotting Cutter

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Seco Tools
Cutting Width (Inch):
8"
Cutting Width (Decimal Inch):
0.3150"
Cutting Width (mm):
8.00mm
Maximum Depth of Cut (Inch):
37/94"
Maximum Depth of Cut (Decimal Inch):
0.3937"
Maximum Depth of Cut (mm):
10.00mm
Cutter Diameter (Inch):
154-2/5"
Cutter Diameter (Decimal Inch):
6.0787"
Cutter Diameter (mm):
154.40mm
interval quantity:
1
