Product Specifications
| Manufacturer Part Number | 02869728 |
| Cutting Diameter (Decimal Inch) | 6.000" |
| Cutting Diameter (mm) | 152.40mm |
| Connection Bore Diameter (Decimal Inch) | 1.250" |
| Connection Bore Diameter (mm) | 31.75mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.875" |
| Contact Surface Diameter Machine Side (mm) | 47.63mm |
| Functional Length (Decimal Inch) | 0.406" |
| Functional Length (mm) | 10.32mm |
| Keyway Width (Decimal Inch) | 0.312" |
| Keyway Width (mm) | 7.92mm |
| Cutting Width (Decimal Inch) | 0.313" |
| Cutting Width (mm) | 7.94mm |
| Maximum Depth of Cut (Decimal Inch) | 0.313" |
| Maximum Depth of Cut (mm) | 7.94mm |
| Maximum Cutting Depth (Decimal Inch) | 1.949" |
| Maximum Cutting Depth (mm) | 49.50mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -12 Degree |
| Cutting Direction | Neutral |
| Maximum Rotational Speed (rpm) | 5900 rpm |
| Cutting Pitch Density | Normal |
| Pocket Seat Code of The Cutter | 335.19-12045 |
| Cutting Item Material Type | Steel |
| Shank Type | Arbor hole |

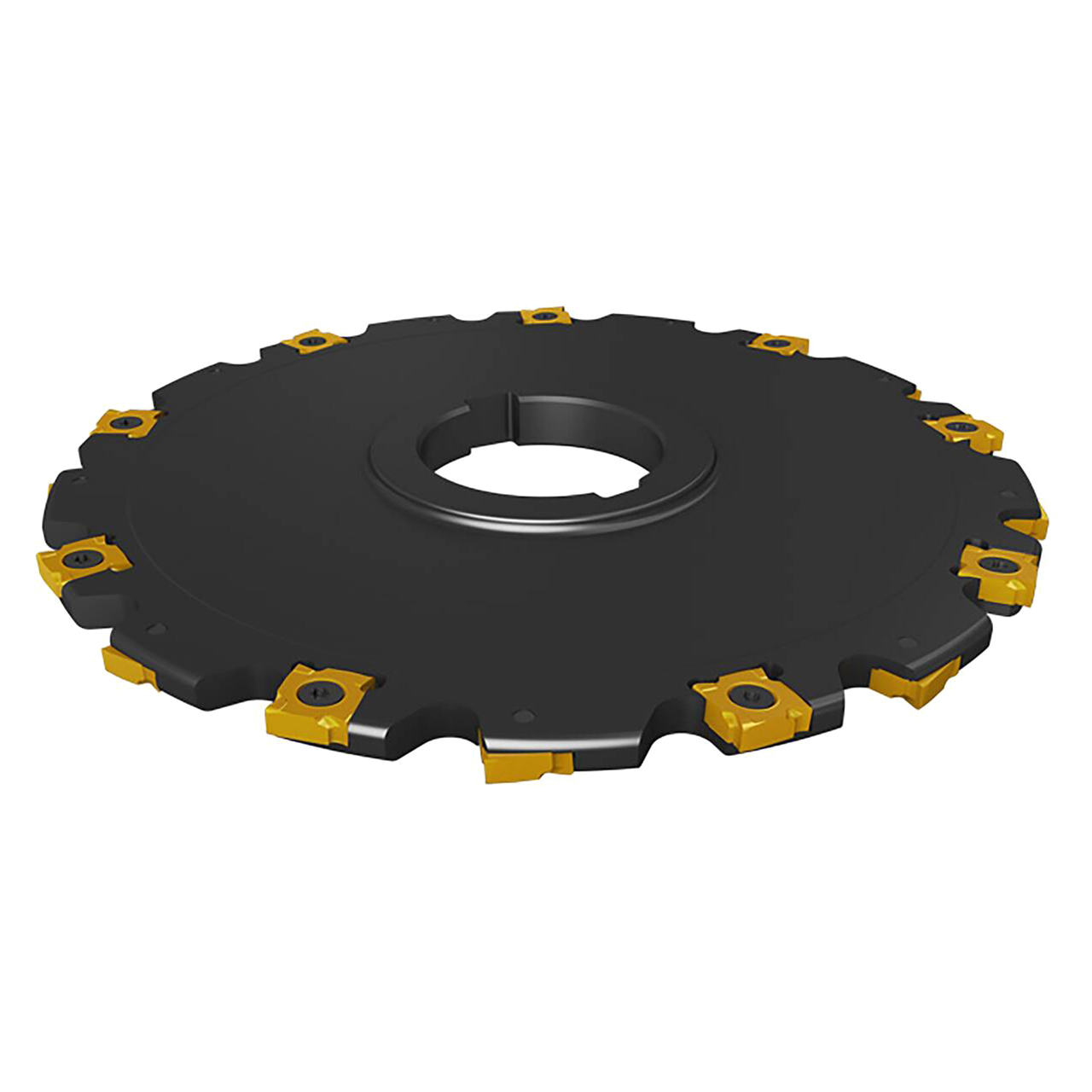

| Product Type | Indexable Slotting Cutter |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Width (Inch):
7-47/50"
Cutting Width (Decimal Inch):
0.3126"
Cutting Width (mm):
7.94mm
Maximum Depth of Cut (Inch):
5/16"
Maximum Depth of Cut (Decimal Inch):
0.3126"
Maximum Depth of Cut (mm):
7.94mm
Cutter Diameter (Inch):
152-2/5"
Cutter Diameter (Decimal Inch):
6.0000"
Cutter Diameter (mm):
152.40mm
