Product Specifications
| Manufacturer Part Number | 02869759 |
| Cutting Diameter (Decimal Inch) | 4.000" |
| Cutting Diameter (mm) | 101.60mm |
| Connection Bore Diameter (Decimal Inch) | 1.000" |
| Connection Bore Diameter (mm) | 25.40mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.880" |
| Contact Surface Diameter Machine Side (mm) | 47.75mm |
| Functional Length (Decimal Inch) | 2.000" |
| Functional Length (mm) | 50.80mm |
| Keyway Width (Decimal Inch) | 0.382" |
| Keyway Width (mm) | 9.70mm |
| Cutting Width (Decimal Inch) | 0.187" |
| Cutting Width (mm) | 4.76mm |
| Maximum Depth of Cut (Decimal Inch) | 0.187" |
| Maximum Depth of Cut (mm) | 4.76mm |
| Depth of Key Way (Decimal Inch) | 0.224" |
| Depth of Key Way (mm) | 5.70mm |
| Maximum Cutting Depth (Decimal Inch) | 0.906" |
| Maximum Cutting Depth (mm) | 23.00mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -12 Degree |
| Cutting Direction | Right Hand |
| Maximum Rotational Speed (rpm) | 11800 rpm |
| Cutting Pitch Density | Normal |
| Pocket Seat Code of The Cutter | 335.19-1103 |
| Cutting Item Material Type | Steel |
| Shank Type | Arbor |

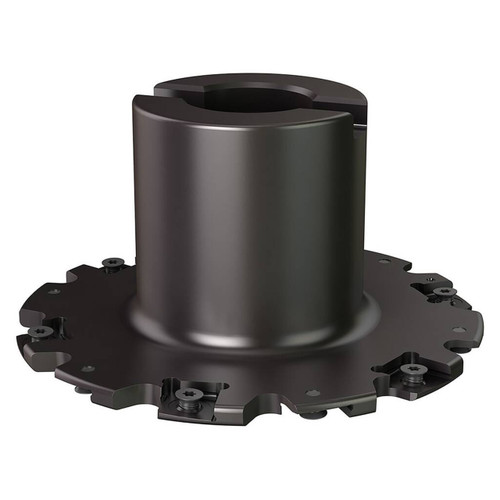

| Product Type | Indexable Slotting Cutter |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Width (Inch):
4-19/25"
Cutting Width (Decimal Inch):
0.1874"
Cutting Width (mm):
4.76mm
Maximum Depth of Cut (Inch):
3/16"
Maximum Depth of Cut (Decimal Inch):
0.1874"
Maximum Depth of Cut (mm):
4.76mm
Cutter Diameter (Inch):
101-3/5"
Cutter Diameter (Decimal Inch):
4.0000"
Cutter Diameter (mm):
101.60mm
interval quantity:
1
