Product Specifications
| Manufacturer Part Number | 02881032 |
| Cutting Diameter (mm) | 7.40mm |
| Connection Diameter Machine Side (mm) | 12.00mm |
| Maximum Cutting Diameter (mm) | 14.00mm |
| Shank Diameter (mm) | 12.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 26.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 21.40mm |
| Protruding Length (mm) | 75.00mm |
| Shank Length (mm) | 104.00mm |
| Overall Length (mm) | 120.00mm |
| Maximum Depth of Cut (mm) | 0.65mm |
| Programming Radius (mm) | 1.50mm |
| Uncut Thickness (mm) | 0.32 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -7 Degree |
| Rake Radial Angle (Degree) | -7 Degree |
| Rake Orthogonal Angle (Degree) | -7 Degree |
| Axial Rake Angle (Degree) | 4 Degree |
| Maximum Ramping Angle (Degree) | 3.5 Degree |
| Maximum Rotational Speed (rpm) | 42000 rpm |
| Insert Shape Code | L |
| Shank Type | Cylindrical |

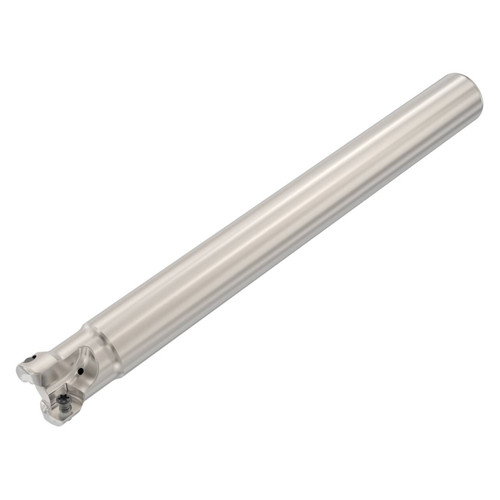

| Product Type | Indexable High-Feed End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
7/24"
Cutting Diameter (Decimal Inch):
0.2913"
Cutting Diameter (mm):
7.40mm
Maximum Depth of Cut (Inch):
1/39"
Maximum Depth of Cut (Decimal Inch):
0.0256"
Maximum Depth of Cut (mm):
0.65mm
Shank Type:
Cylindrical
Shank Diameter (Inch):
17/36"
Shank Diameter (Decimal Inch):
0.4724"
Shank Diameter (mm):
12.00mm
interval quantity:
