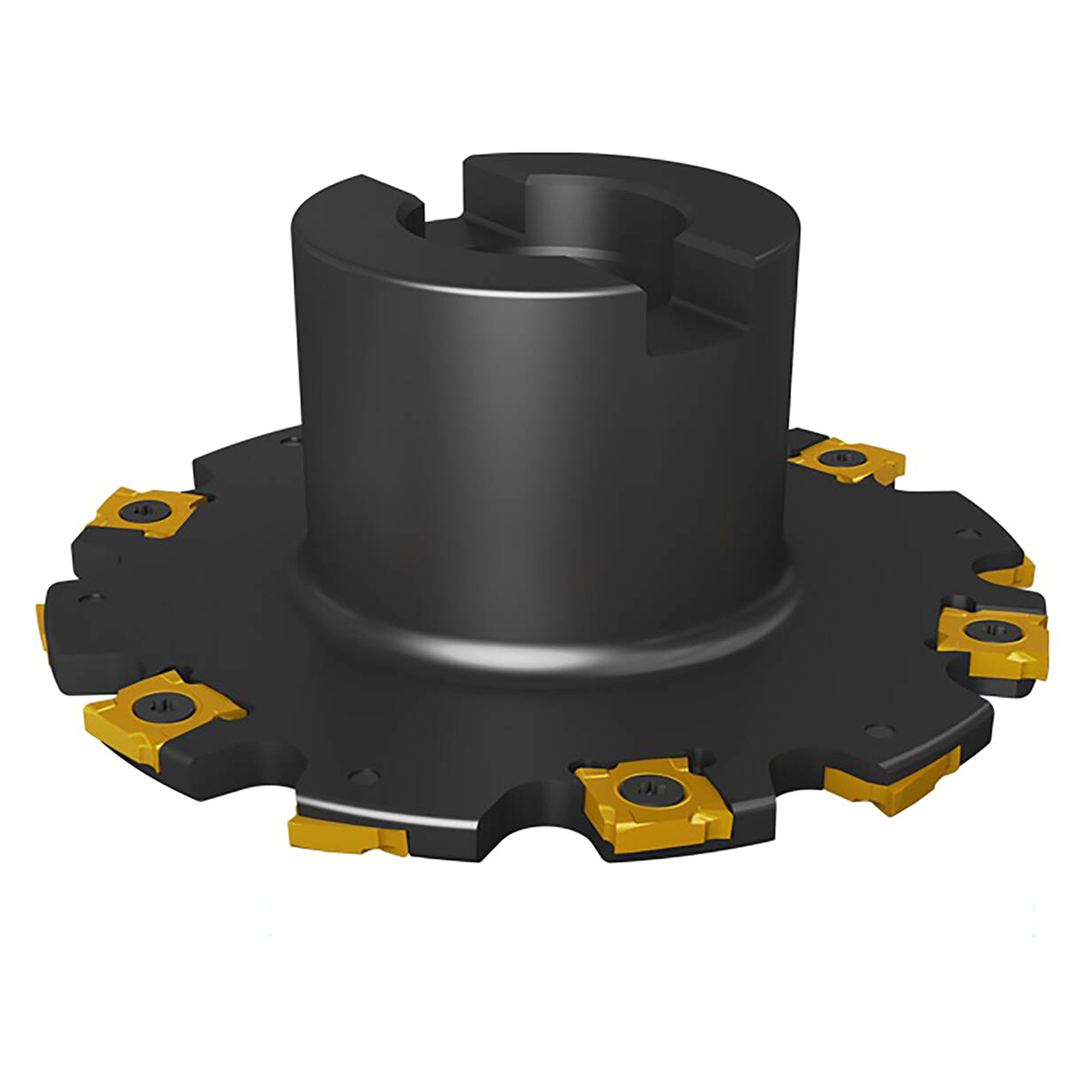

Seco Tools 02881180 | R335.19-02.50-0.37-3 63.50mm Diameter x 50.80mm Functional Length x 90 Degree Cutting Edge Angle Indexable Slotting Cutter

$1,193.10
Brand:
Seco Tools
Cutting Width (Inch):
9-13/25"
Cutting Width (Decimal Inch):
0.3748"
Cutting Width (mm):
9.52mm
Maximum Depth of Cut (Inch):
3/8"
Maximum Depth of Cut (Decimal Inch):
0.3748"
Maximum Depth of Cut (mm):
9.52mm
Cutter Diameter (Inch):
63-1/2"
Cutter Diameter (Decimal Inch):
2.5000"
Cutter Diameter (mm):
63.50mm
interval quantity:
1
SKU:
23282379
Weight:
0.92 LBS
Shipping:
Free Shipping
Seco Tools 02881180 | R335.19-02.50-0.37-3 63.50mm Diameter x 50.80mm Functional Length x 90 Degree Cutting Edge Angle Indexable Slotting Cutter

Product Specifications
Manufacturer Part Number02881180
Cutting Diameter (Decimal Inch)2.500"
Cutting Diameter (mm)63.50mm
Connection Bore Diameter (Decimal Inch)0.750"
Connection Bore Diameter (mm)19.05mm
Contact Surface Diameter Machine Side (Decimal Inch)1.575"
Contact Surface Diameter Machine Side (mm)40.00mm
Body Length (Decimal Inch)0.224"
Body Length (mm)5.70mm
Functional Length (Decimal Inch)2.000"
Functional Length (mm)50.80mm
Keyway Width (Decimal Inch)0.321"
Keyway Width (mm)8.15mm
Cutting Width (Decimal Inch)0.375"
Cutting Width (mm)9.52mm
Maximum Depth of Cut (Decimal Inch)0.375"
Maximum Depth of Cut (mm)9.52mm
Depth of Key Way (Decimal Inch)0.193"
Depth of Key Way (mm)4.90mm
Maximum Cutting Depth (Decimal Inch)0.555"
Maximum Cutting Depth (mm)14.10mm
Tool Cutting Edge Angle (Degree)90 Degree
Tool Cutting Edge Angle In Feed Direction End (Degree)90 Degree
Tool Cutting Edge Angle In Feed Direction Side (Degree)90 Degree
Rake Radial Angle (Degree)-15 Degree
Cutting DirectionRight Hand
Maximum Rotational Speed (rpm)8400 rpm
Cutting Pitch DensityNormal
Pocket Seat Code of The Cutter335.19-1205
Cutting Item Material TypeSteel
Shank TypeArbor
Product TypeIndexable Slotting Cutter
