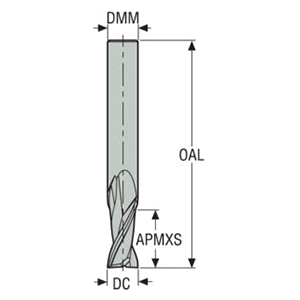

Seco Tools 02881765 | JS412080D2SZ2.0 8.00mm Diameter x 8.00mm Shank x 63.00mm OAL x 30 Degree Helix Angle 2 Flute Uncoated Carbide Square End Mill

$67.30 $58.55
(You save $8.75)
Brand:
Seco Tools
Mill Diameter (Inch):
23/73"
Mill Diameter (Decimal Inch):
0.3150"
Mill Diameter (mm):
8.00mm
Number of Flutes:
2
Shank Type:
Cylindrical
Material:
Carbide
Finish/Coating:
Uncoated
Shank Diameter (Inch):
23/73"
Shank Diameter (Decimal Inch):
0.3150"
Shank Diameter (mm):
8.00mm
Overall Length (Inch):
2-12/25"
Overall Length (Decimal Inch):
2.4803"
Overall Length (mm):
63.00mm
Helix Angle:
30 Degree
Cutting Direction:
Right Hand
interval quantity:
1
SKU:
25270717
UPC:
Weight:
0.08 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Seco Tools 02881765 | JS412080D2SZ2.0 8.00mm Diameter x 8.00mm Shank x 63.00mm OAL x 30 Degree Helix Angle 2 Flute Uncoated Carbide Square End Mill

Product Specifications
Manufacturer Part Number02881765
Cutting Diameter (mm)8.00mm
Cutting Diameter 1 (mm)8.00mm
Connection Diameter Machine Side (mm)8.00mm
Shank Diameter (mm)8.00mm
Minimum Helical Interpolation Hole Diameter (mm)10.40mm
Maximum Helical Interpolation Hole Diameter (mm)15.60mm
Cutting Edge Effective Length (mm)16.00mm
Minimum Clamping Length (mm)36.00mm
Length Variant Cataloque2
Theoretical Cutting Edge Length (mm)16.00mm
Overall Length (mm)63.00mm
Number of Flute2
Pheripheral Cutting Edge Count2
Maximum Depth of Cut (mm)16.00mm
Axial Runout (mm)0.02mm
Radial Runout (mm)0.02mm
Cutting Edge Count2
Face Cutting Edge Count2
Tool Cutting Edge Angle (Degree)90 Degree
Tool Cutting Edge Angle In Feed Direction End (Degree)93 Degree
Tool Cutting Edge Angle In Feed Direction Side (Degree)90 Degree
Flute Helix Angle (Degree)30 Degree
Rake Radial Angle (Degree)20 Degree
Maximum Ramping Angle (Degree)30 Degree
Cutting DirectionRight Hand
Flute Helix HandRight Hand
Center Cutting CapabilityYes
Cutting Geometry TypeJS412
Cutting Geometry Type TechnicalJS412
Internal Coolant ChannelNo
Cutting Item Material TypeCarbide
Shank TypeCylindrical
MaterialCarbide
CoatingUncoated
Product TypeSquare End Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Seco Tools
Mill Diameter (Inch):
23/73"
Mill Diameter (Decimal Inch):
0.3150"
Mill Diameter (mm):
8.00mm
Number of Flutes:
2
Shank Type:
Cylindrical
Material:
Carbide
Finish/Coating:
Uncoated
Shank Diameter (Inch):
23/73"
Shank Diameter (Decimal Inch):
0.3150"
Shank Diameter (mm):
8.00mm
Overall Length (Inch):
2-12/25"
Overall Length (Decimal Inch):
2.4803"
Overall Length (mm):
63.00mm
Helix Angle:
30 Degree
Cutting Direction:
Right Hand
interval quantity:
1
