| Manufacturer Part Number | 02898337 |
| Cutting Diameter (Decimal Inch) | 0.391" |
| Cutting Diameter (mm) | 9.92mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.394" |
| Connection Diameter Machine Side (mm) | 10.00mm |
| Shank Diameter (Decimal Inch) | 0.394" |
| Shank Diameter (mm) | 10.00mm |
| Chip Flute Length (Decimal Inch) | 1.850" |
| Chip Flute Length (mm) | 47.00mm |
| Functional Length Secondary (Decimal Inch) | 1.929" |
| Functional Length Secondary (mm) | 49.00mm |
| Shank Length (Decimal Inch) | 1.575" |
| Shank Length (mm) | 40.00mm |
| Usable Length (Decimal Inch) | 1.378" |
| Usable Length (mm) | 35.00mm |
| Overall Length (Decimal Inch) | 3.504" |
| Overall Length (mm) | 89.00mm |
| Point Length (Decimal Inch) | 0.071" |
| Point Length (mm) | 1.81mm |
| Tool Cutting Edge Angle (Degree) | 70 Degree |
| Flute Helix Angle (Degree) | 30 Degree |
| Flute Helix Hand | Right Hand |
| Coolant Entry Style Code | 4 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 4 |
| Shank Type | Cylindrical |
| Material | Carbide |

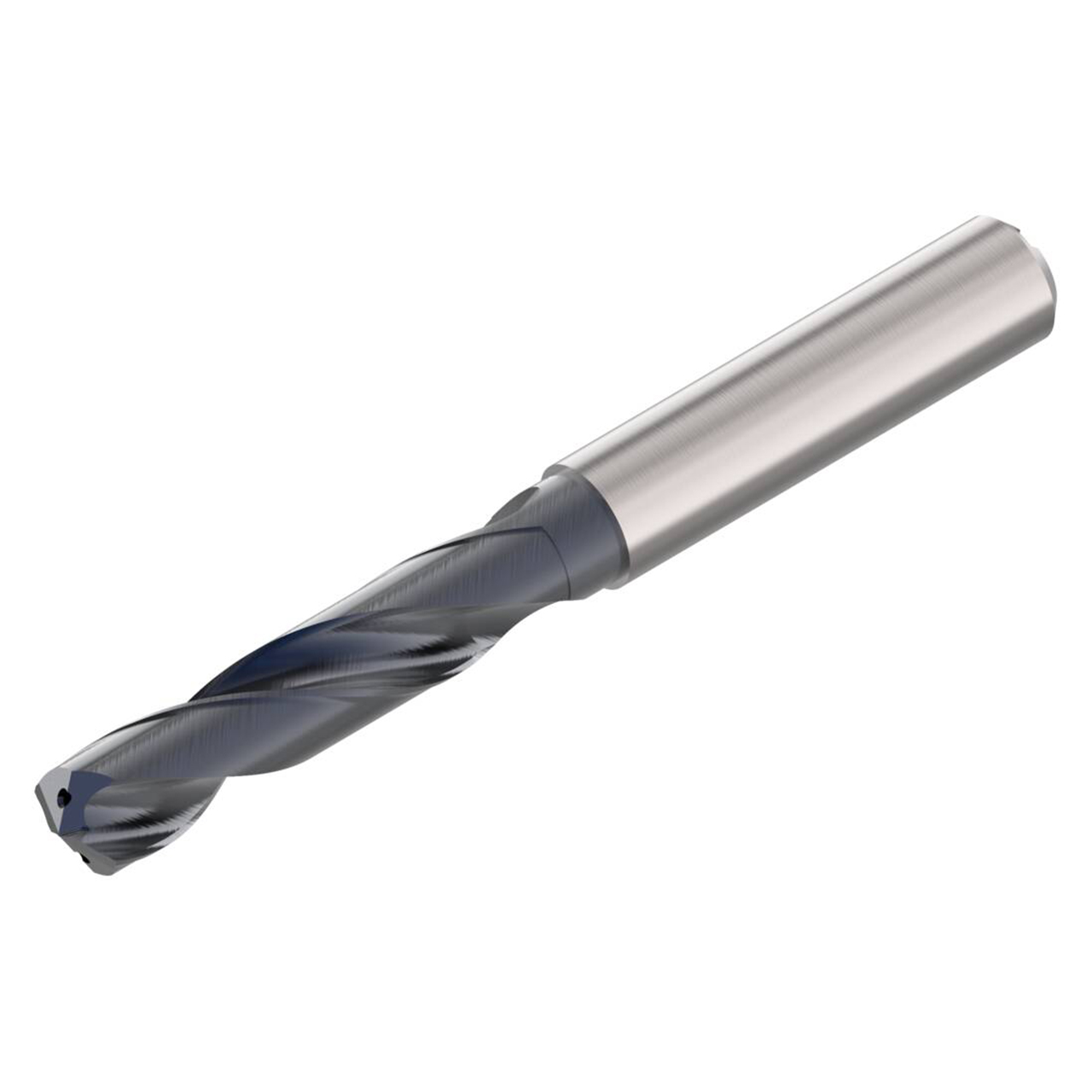

| Product Type | Screw Machine Length Drill Bit |
