Seco Tools 02899503 | 0.625" Inscribed Circle Diameter x 0.059" Radius x 0.219" Thickness 4 Cutting Edge Carbide Quattromill Insert

$41.70 $34.23
(You save $7.47)
Brand:
Seco Tools
Material:
Carbide
Finish/Coating:
PVD
Length (Decimal Inch):
0.0709"
Inscribed Circle (Decimal Inch):
0.6250"
Thickness (Decimal Inch):
0.2189"
interval quantity:
10
SKU:
23282472
UPC:
Weight:
0.02 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping
Seco Tools 02899503 | 0.625" Inscribed Circle Diameter x 0.059" Radius x 0.219" Thickness 4 Cutting Edge Carbide Quattromill Insert

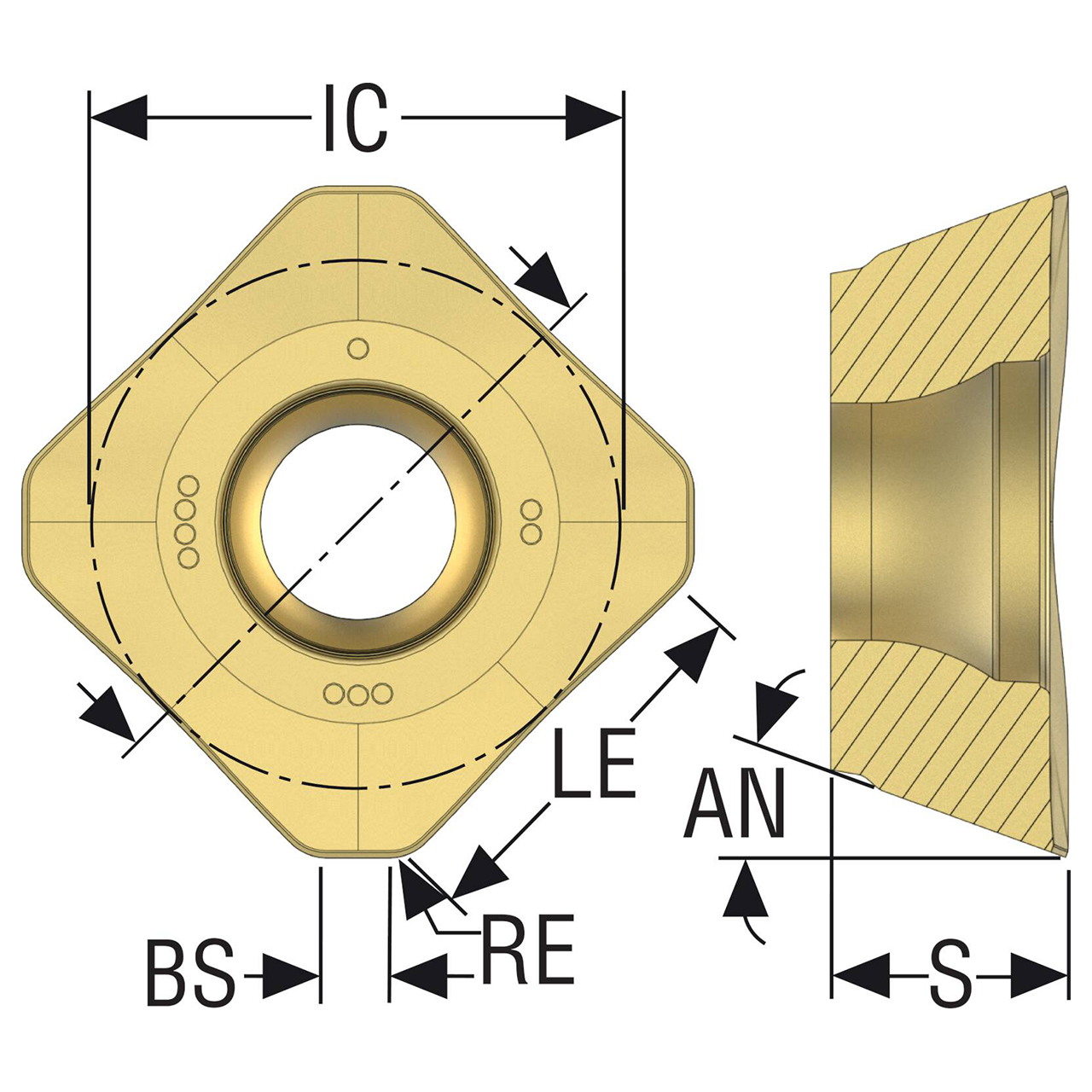

Product Specifications
Manufacturer Part Number02899503
Fixing Hole Diameter (Decimal Inch)0.221"
Fixing Hole Diameter (mm)5.60mm
Inscribed Circle Diameter (Decimal Inch)0.625"
Inscribed Circle Diameter (mm)15.88mm
Wiper Edge Length (Decimal Inch)0.071"
Wiper Edge Length (mm)1.80mm
Cutting Edge Effective Length (Decimal Inch)0.406"
Cutting Edge Effective Length (mm)10.30mm
Corner Radius (Decimal Inch)0.059"
Corner Radius (mm)1.50mm
Insert Thickness (Decimal Inch)0.219"
Insert Thickness (mm)5.56mm
Clearance Angle Major (Degree)20 Degree
Cutting Edge Count4
Cutting Geometry Type TechnicalM12
Pocket Seat Code of The CutterSE.X1505
Insert Size And ShapeSEEX1505
Insert Rake Angle (Degree)5 Degree
Insert HandNeutral
MaterialCarbide
Product TypeQuattromill Insert

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
