Product Specifications
| Manufacturer Part Number | 02928400 |
| Cutting Diameter (mm) | 10.00mm |
| Cutting Diameter 1 (mm) | 10.00mm |
| Connection Diameter Machine Side (mm) | 10.00mm |
| Shank Diameter (mm) | 10.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 13.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 18.00mm |
| Cutting Edge Effective Length (mm) | 30.00mm |
| Minimum Clamping Length (mm) | 40.00mm |
| Length Variant Cataloque | 1 |
| Theoretical Cutting Edge Length (mm) | 30.00mm |
| Overall Length (mm) | 82.00mm |
| Number of Flute | 4 |
| Pheripheral Cutting Edge Count | 4 |
| Maximum Depth of Cut (mm) | 30.00mm |
| Profile Radius (mm) | 5.00mm |
| Corner Radius (mm) | 5.00mm |
| Radial Runout (mm) | 0.02mm |
| Cutting Edge Count | 4 |
| Face Cutting Edge Count | 4 |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Flute Helix Angle (Degree) | 30 Degree |
| Rake Radial Angle (Degree) | 10 Degree |
| Rake Orthogonal Angle (Degree) | 10 Degree |
| Maximum Ramping Angle (Degree) | 5 Degree |
| Cutting Direction | Right Hand |
| Flute Helix Hand | Right Hand |
| Center Cutting Capability | Yes |
| Cutting Geometry Type | JS534 |
| Cutting Geometry Type Technical | JS534_1 |
| Internal Coolant Channel | No |
| Cutting Item Material Type | Carbide |
| Shank Type | Weldon |
| Material | Carbide |
| Coating | NXT |

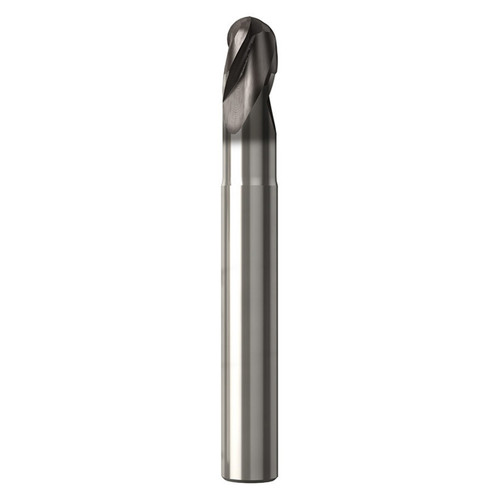

| Product Type | Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Mill Diameter (Inch):
37/94"
Mill Diameter (Decimal Inch):
0.3937"
Mill Diameter (mm):
10.00mm
Number of Flutes:
4
Material:
Carbide
Shank Type:
Weldon
Overall Length (Inch):
3-21/92"
Overall Length (Decimal Inch):
3.2283"
Overall Length (mm):
82.00mm
Shank Diameter (Inch):
37/94"
Shank Diameter (Decimal Inch):
0.3937"
Shank Diameter (mm):
10.00mm
Finish/Coating:
NXT
Cutting Direction:
Right Hand
Helix Angle:
30 Degree
