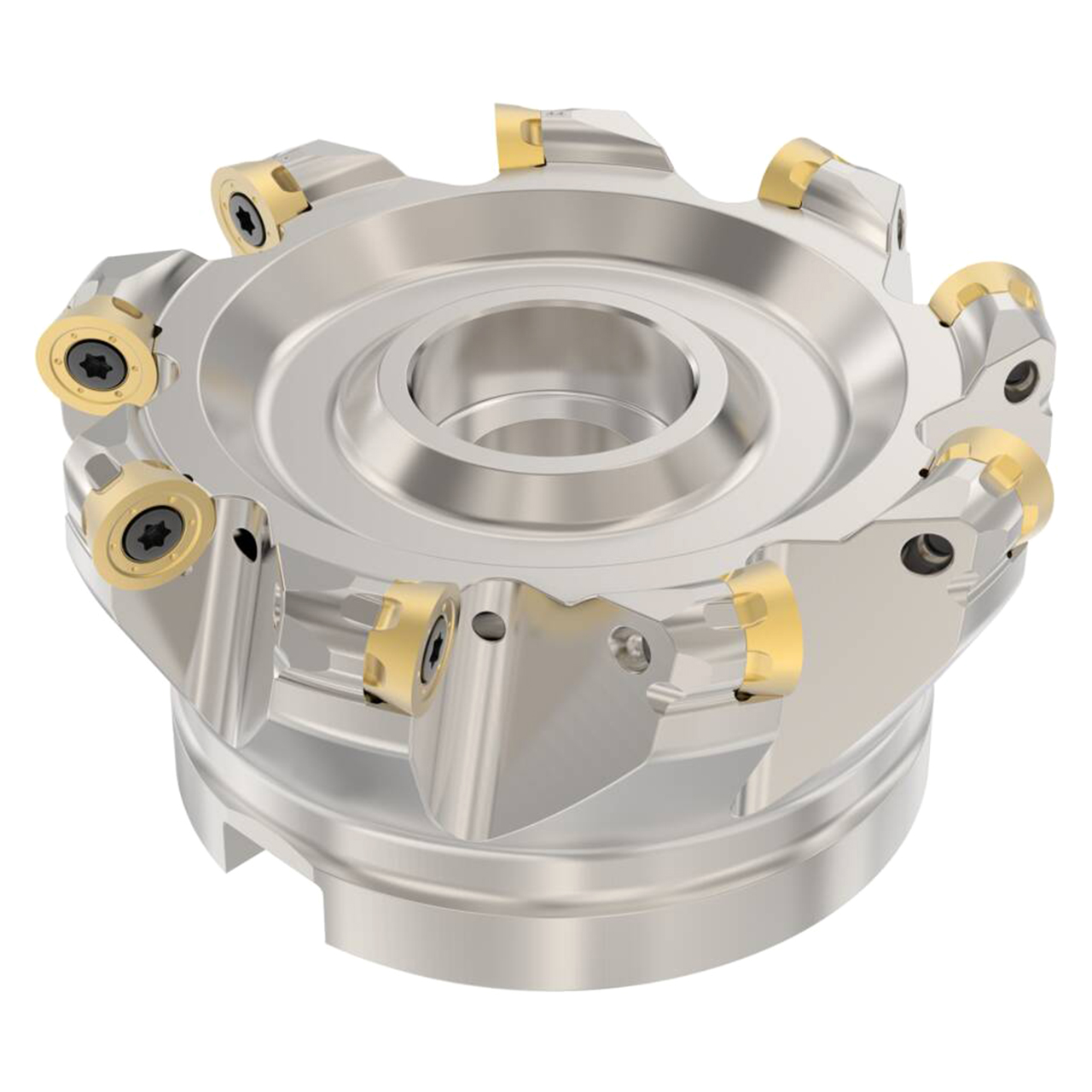

| Manufacturer Part Number | 02949625 |
| Cutting Diameter (mm) | 68.00mm |
| Connection Bore Diameter (mm) | 27.00mm |
| Contact Surface Diameter Machine Side (mm) | 62.00mm |
| Maximum Cutting Diameter (mm) | 80.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 158.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 148.00mm |
| Functional Length (mm) | 50.00mm |
| Maximum Depth of Cut (mm) | 6.00mm |
| Depth of Key Way (mm) | 7.00mm |
| Keyway Width (mm) | 12.40mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Coarse |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -3 Degree |
| Rake Radial Angle (Degree) | -3 Degree |
| Rake Orthogonal Angle (Degree) | -3 Degree |
| Axial Rake Angle (Degree) | 4 Degree |
| Maximum Ramping Angle (Degree) | 3 Degree |
| Maximum Rotational Speed (rpm) | 10000 rpm |
| Insert Shape Code | R |
| Shank Type | Arbor |
| Product Type | Indexable Copy End Mill |
