| Manufacturer Part Number | 02967769 |
| Body Diameter 1 (Decimal Inch) | 0.193" |
| Body Diameter 1 (mm) | 4.90mm |
| Body Diameter 2 (Decimal Inch) | 0.307" |
| Body Diameter 2 (mm) | 7.80mm |
| Coolant Entry Diameter (Decimal Inch) | 0.138" |
| Coolant Entry Diameter (mm) | 3.50mm |
| Body Length 1 (Decimal Inch) | 0.098" |
| Body Length 1 (mm) | 2.50mm |
| Body Length 2 (Decimal Inch) | 0.591" |
| Body Length 2 (mm) | 15.00mm |
| Body Length 3 (Decimal Inch) | 1.142" |
| Body Length 3 (mm) | 29.00mm |
| Overall Length (Decimal Inch) | 1.339" |
| Overall Length (mm) | 34.00mm |
| Coolant Entry Thread Size | M6x1 |
| Functional Width (Decimal Inch) | 0.118" |
| Functional Width (mm) | 3.00mm |
| Body Half Taper Angle Degree) | 90 Degree |
| Driving Key (mm) | 3.00mm |
| Driving Key (Decimal Inch) | 0.118" |

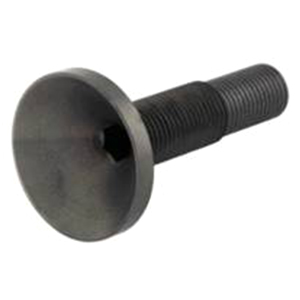

| Product Type | Rotary Tool Holder Hardware |
