Product Specifications
| Manufacturer Part Number | 02969081 |
| Cutting Diameter (mm) | 66.00mm |
| Connection Bore Diameter (mm) | 27.00mm |
| Contact Surface Diameter Machine Side (mm) | 52.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 130.50mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 121.00mm |
| Functional Length (mm) | 40.00mm |
| Maximum Depth of Cut (mm) | 9.00mm |
| Depth of Key Way (mm) | 7.11mm |
| Keyway Width (mm) | 12.46mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Differential | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -4.7 Degree |
| Rake Radial Angle (Degree) | -4.7 Degree |
| Rake Orthogonal Angle (Degree) | -4.7 Degree |
| Axial Rake Angle (Degree) | 8 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Ramping Angle (Degree) | 0.9 Degree |
| Maximum Rotational Speed (rpm) | 14800 rpm |
| Shank Type | Arbor |

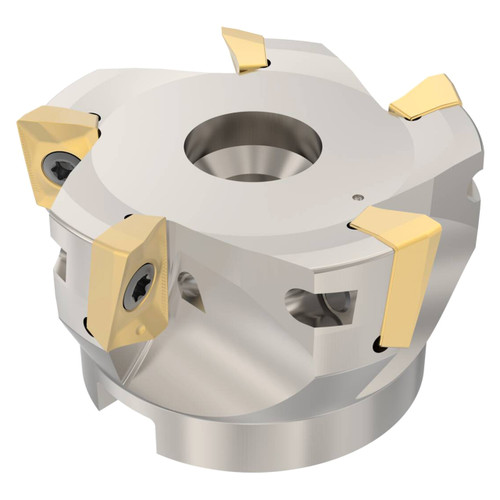

| Product Type | Indexable Square-Shoulder Face Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
2-3/5"
Cutting Diameter (Decimal Inch):
2.5984"
Cutting Diameter (mm):
66.00mm
Maximum Depth of Cut (Inch):
17/48"
Maximum Depth of Cut (Decimal Inch):
0.3543"
Maximum Depth of Cut (mm):
9.00mm
interval quantity:
1
