| Manufacturer Part Number | 02999914 |
| Thread Diameter (Decimal Inch) | 0.394" |
| Thread Diameter (mm) | 10.00mm |
| Threading Chamfer Length (Decimal Inch) | 0.295" |
| Threading Chamfer Length (mm) | 7.50mm |
| Tap Chamfer Length (Decimal Inch) | 0.273" |
| Tap Chamfer Length (mm) | 6.94mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.394" |
| Connection Diameter Machine Side (mm) | 10.00mm |
| Shank Diameter (Decimal Inch) | 0.394" |
| Shank Diameter (mm) | 10.00mm |
| Functional Length (Decimal Inch) | 3.664" |
| Functional Length (mm) | 93.06mm |
| Usable Length (Decimal Inch) | 1.535" |
| Usable Length (mm) | 39.00mm |
| Overall Length (Decimal Inch) | 3.937" |
| Overall Length (mm) | 100.00mm |
| Thread Length (Decimal Inch) | 0.756" |
| Thread Length (mm) | 19.20mm |
| Thread Diameter Size | M10 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.339" |
| Recommended Premachined Hole Diameter (mm) | 8.60mm |
| Connection Size Code | 10.00X8.00 |
| Connection Size Code Machine Side | 10.00X8.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.342" |
| Maximum Premachined Hole Diameter (mm) | 8.68mm |
| Minimum Thread Pitch (Decimal Inch) | 0.059" |
| Minimum Thread Pitch (mm) | 1.50mm |
| Maximum Thread Pitch (Decimal Inch) | 0.059" |
| Maximum Thread Pitch (mm) | 1.50mm |
| Number of Flute | 3 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6HX |
| Threading Chamfer Type | B |
| Thread Form Type | M |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | ISO-P |
| Cutting Geometry Type Technical | Straight with spiral point |
| Material | HSS-E-PM |
| Coating | AlTiN |

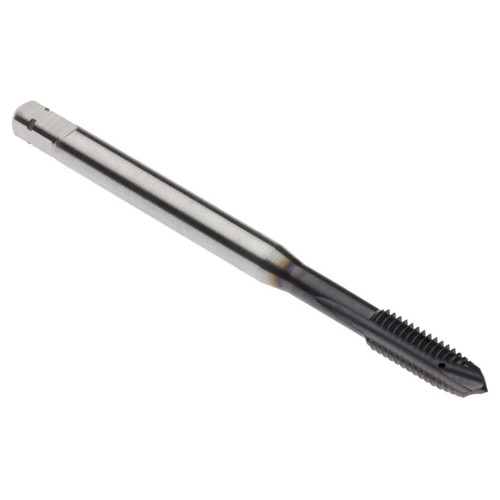

| Product Type | Spiral Point Tap |
