| Manufacturer Part Number | 02999946 |
| Thread Diameter (Decimal Inch) | 0.236" |
| Thread Diameter (mm) | 6.00mm |
| Threading Chamfer Length (Decimal Inch) | 0.148" |
| Threading Chamfer Length (mm) | 3.75mm |
| Tap Chamfer Length (Decimal Inch) | 0.138" |
| Tap Chamfer Length (mm) | 3.50mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.177" |
| Connection Diameter Machine Side (mm) | 4.50mm |
| Shank Diameter (Decimal Inch) | 0.177" |
| Shank Diameter (mm) | 4.50mm |
| Functional Length (Decimal Inch) | 3.012" |
| Functional Length (mm) | 76.50mm |
| Usable Length (Decimal Inch) | 2.323" |
| Usable Length (mm) | 59.00mm |
| Overall Length (Decimal Inch) | 3.150" |
| Overall Length (mm) | 80.00mm |
| Thread Length (Decimal Inch) | 0.591" |
| Thread Length (mm) | 15.00mm |
| Thread Diameter Size | MF6X0.75 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.209" |
| Recommended Premachined Hole Diameter (mm) | 5.30mm |
| Connection Size Code | 4.50X3.40 |
| Connection Size Code Machine Side | 4.50X3.40 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.212" |
| Maximum Premachined Hole Diameter (mm) | 5.38mm |
| Minimum Thread Pitch (Decimal Inch) | 0.030" |
| Minimum Thread Pitch (mm) | 0.75mm |
| Maximum Thread Pitch (Decimal Inch) | 0.030" |
| Maximum Thread Pitch (mm) | 0.75mm |
| Number of Flute | 3 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6HX |
| Threading Chamfer Type | B |
| Thread Form Type | MF |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | ISO-P |
| Cutting Geometry Type Technical | Straight with spiral point |
| Material | HSS-E-PM |
| Coating | AlTiN |

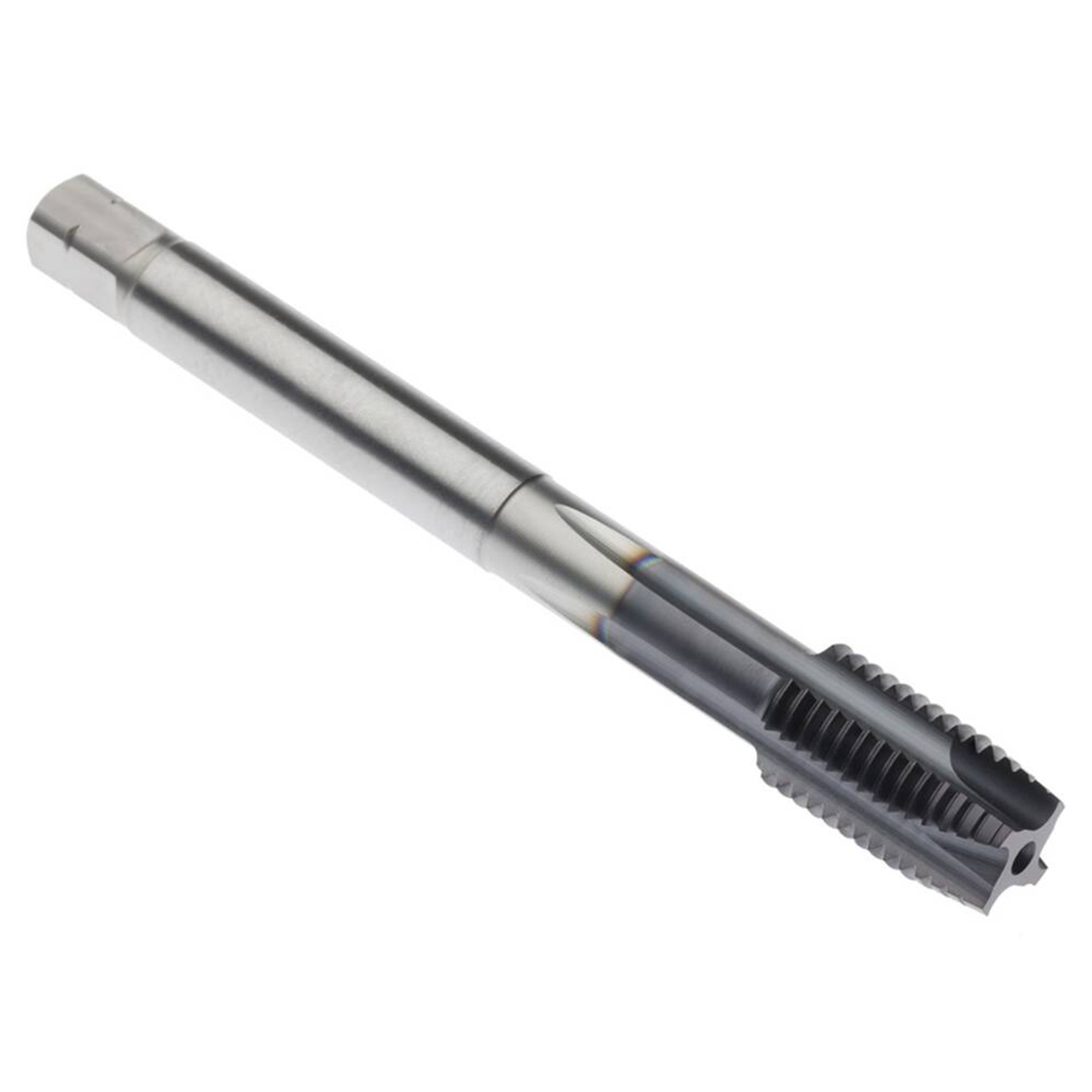

| Product Type | Spiral Point Tap |
