| Manufacturer Part Number | 02999960 |
| Thread Diameter (Decimal Inch) | 0.709" |
| Thread Diameter (mm) | 18.00mm |
| Threading Chamfer Length (Decimal Inch) | 0.197" |
| Threading Chamfer Length (mm) | 5.00mm |
| Tap Chamfer Length (Decimal Inch) | 0.183" |
| Tap Chamfer Length (mm) | 4.65mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.551" |
| Connection Diameter Machine Side (mm) | 14.00mm |
| Shank Diameter (Decimal Inch) | 0.551" |
| Shank Diameter (mm) | 14.00mm |
| Functional Length (Decimal Inch) | 4.148" |
| Functional Length (mm) | 105.35mm |
| Usable Length (Decimal Inch) | 2.598" |
| Usable Length (mm) | 66.00mm |
| Overall Length (Decimal Inch) | 4.331" |
| Overall Length (mm) | 110.00mm |
| Thread Length (Decimal Inch) | 0.945" |
| Thread Length (mm) | 24.00mm |
| Thread Diameter Size | MF18X1.0 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.673" |
| Recommended Premachined Hole Diameter (mm) | 17.10mm |
| Connection Size Code | 14.00X11.00 |
| Connection Size Code Machine Side | 14.00X11.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.675" |
| Maximum Premachined Hole Diameter (mm) | 17.15mm |
| Minimum Thread Pitch (Decimal Inch) | 0.039" |
| Minimum Thread Pitch (mm) | 1.00mm |
| Maximum Thread Pitch (Decimal Inch) | 0.039" |
| Maximum Thread Pitch (mm) | 1.00mm |
| Number of Flute | 4 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6HX |
| Threading Chamfer Type | B |
| Thread Form Type | MF |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | ISO-P |
| Cutting Geometry Type Technical | Straight with spiral point |
| Material | HSS-E-PM |
| Coating | AlTiN |

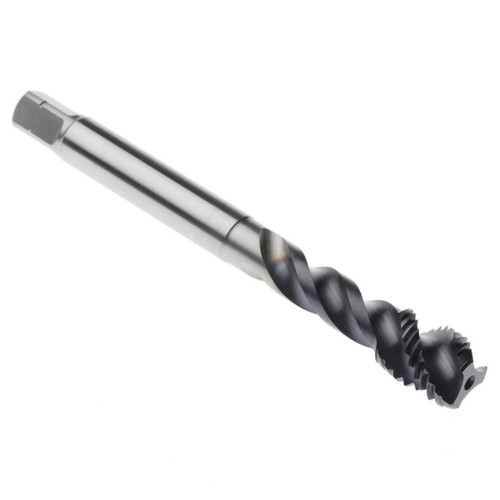

| Product Type | Spiral Point Tap |
