Product Specifications
| Manufacturer Part Number | 03006931 |
| Minimum Cutting Diameter Internal (mm) | 24.00mm |
| Connection Diameter Machine Side (mm) | 20.00mm |
| Shank Diameter (mm) | 20.00mm |
| Functional Length (mm) | 171.00mm |
| Head Length (mm) | 42.00mm |
| Insert Width (Decimal Inch) | 0.295" |
| Insert Width (mm) | 7.50mm |
| Height of Tool Holder Shank (mm) | 19.00mm |
| Shank Type | Cylindrical |
| Coolant Pressure | Bar |
| Coolant Supply Property | 1 |
| Cutting Direction | Right Hand |
| Insert Clamping System | P |

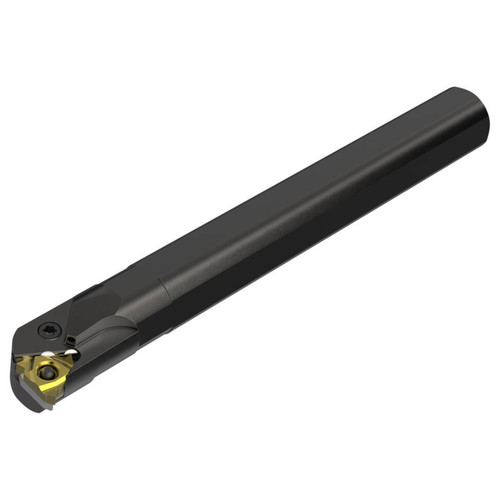

| Product Type | Indexable Threading Toolholder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Shank Diameter (Inch):
25/32"
Shank Diameter (Decimal Inch):
0.7900"
Shank Diameter (mm):
20.00mm
Shank Width (Inch):
45/64"
Shank Width (Decimal Inch):
0.7100"
Shank Width (mm):
18.00mm
