| Manufacturer Part Number | 03029792 |
| Body Diameter (Decimal Inch) | 1.437" |
| Body Diameter (mm) | 36.50mm |
| Body Diameter 1 (Decimal Inch) | 1.772" |
| Body Diameter 1 (mm) | 45.00mm |
| Body Diameter 2 (Decimal Inch) | 2.267" |
| Body Diameter 2 (mm) | 57.58mm |
| Body Length (Decimal Inch) | 6.299" |
| Body Length (mm) | 160.00mm |
| Body Length 1 (Decimal Inch) | 0.965" |
| Body Length 1 (mm) | 24.50mm |
| Body Length 2 (Decimal Inch) | 6.224" |
| Body Length 2 (mm) | 158.10mm |
| Body Length 3 (Decimal Inch) | 1.142" |
| Body Length 3 (mm) | 29.00mm |
| Functional Length (Decimal Inch) | 7.284" |
| Functional Length (mm) | 185.00mm |
| Protruding Length (Decimal Inch) | 7.284" |
| Protruding Length (mm) | 185.00mm |
| Overall Length (Decimal Inch) | 8.780" |
| Overall Length (mm) | 223.00mm |
| Body Half Taper Angle Degree) | 2.75 Degree |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 8000 rpm |

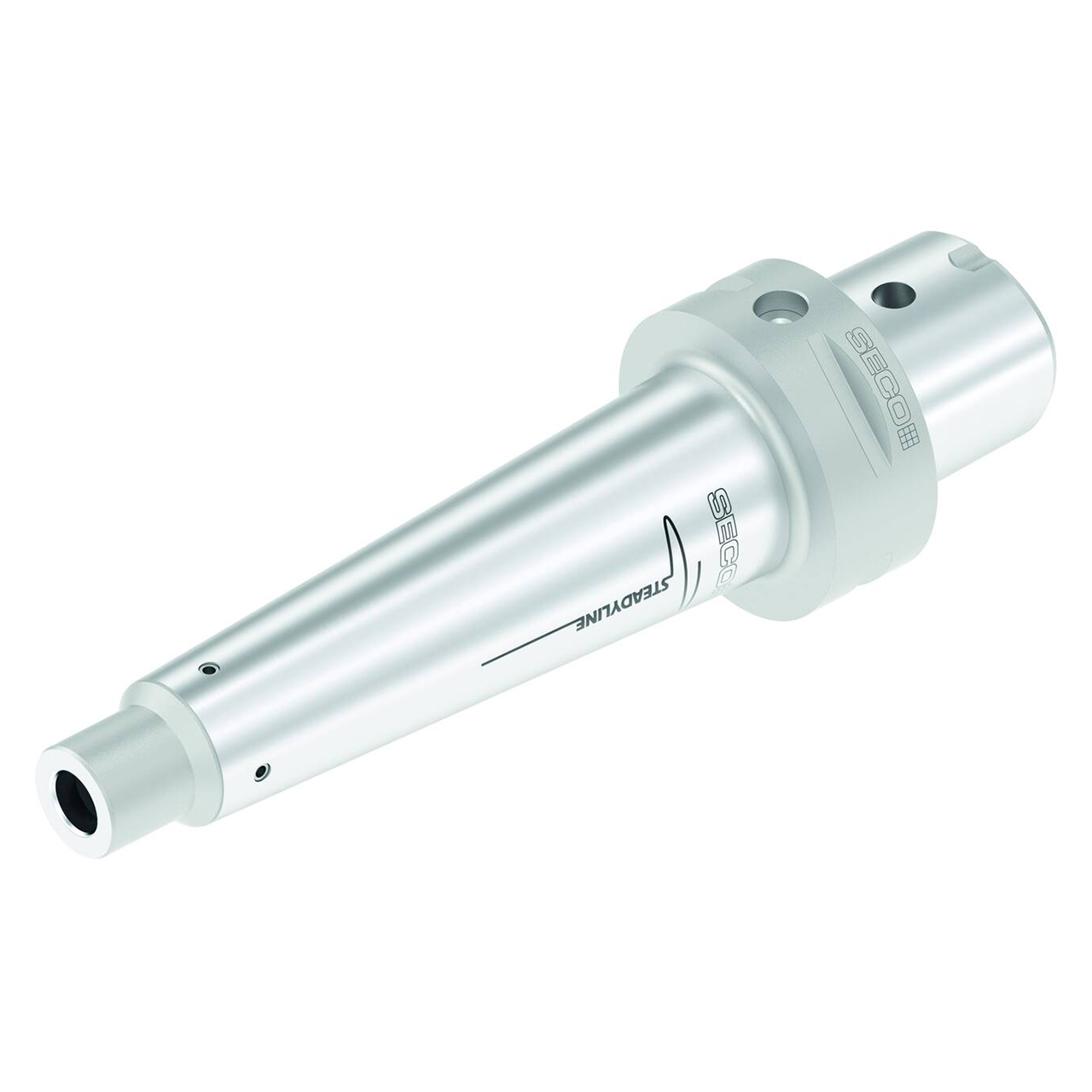

| Product Type | Replaceable Tip Milling Shank |
