| Manufacturer Part Number | 03080329 |
| Cutting Diameter (Decimal Inch) | 1.750" |
| Cutting Diameter (mm) | 44.45mm |
| Minimum Cutting Diameter Internal (Decimal Inch) | 1.733" |
| Minimum Cutting Diameter Internal (mm) | 44.01mm |
| Maximum Cutting Diameter Internal (Decimal Inch) | 1.774" |
| Connection Diameter Machine Side (Decimal Inch) | 1.500" |
| Connection Diameter Machine Side (mm) | 38.10mm |
| Flange Diameter (Decimal Inch) | 1.969" |
| Flange Diameter (mm) | 50.00mm |
| Shank Diameter (Decimal Inch) | 1.500" |
| Shank Diameter (mm) | 38.10mm |
| Shank Length (Decimal Inch) | 2.750" |
| Shank Length (mm) | 69.85mm |
| Usable Length (Decimal Inch) | 7.000" |
| Usable Length (mm) | 177.80mm |
| Overall Length (Decimal Inch) | 11.128" |
| Overall Length (mm) | 282.65mm |
| Adjustment Limit Minimum (Decimal Inch) | 0.009" |
| Adjustment Limit Minimum (mm) | 0.22mm |
| Adjustment Limit Maximum (Decimal Inch) | 0.012" |
| Adjustment Limit Maximum (mm) | 0.31mm |
| Shank Type | R7-C Stationary |
| Coolant Entry Style Code | 3 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Tool Cutting Edge Angle (Degree) | 88 Degree |

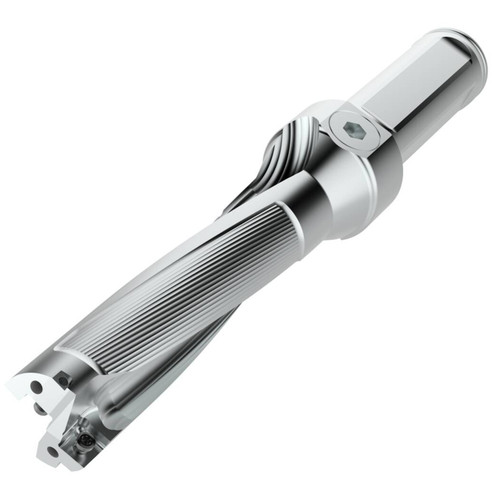

| Product Type | Indexable Insert Drill |
