| Manufacturer Part Number | 03080570 |
| Cutting Diameter (mm) | 18.50mm |
| Minimum Cutting Diameter Internal (mm) | 18.06mm |
| Connection Diameter Machine Side (mm) | 20.00mm |
| Flange Diameter (mm) | 30.00mm |
| Shank Diameter (mm) | 20.00mm |
| Shank Length (mm) | 50.00mm |
| Usable Length (mm) | 56.00mm |
| Overall Length (mm) | 136.00mm |
| Adjustment Limit Minimum (mm) | 0.22mm |
| Adjustment Limit Maximum (mm) | 0.31mm |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Tool Cutting Edge Angle (Degree) | 87.5 Degree |

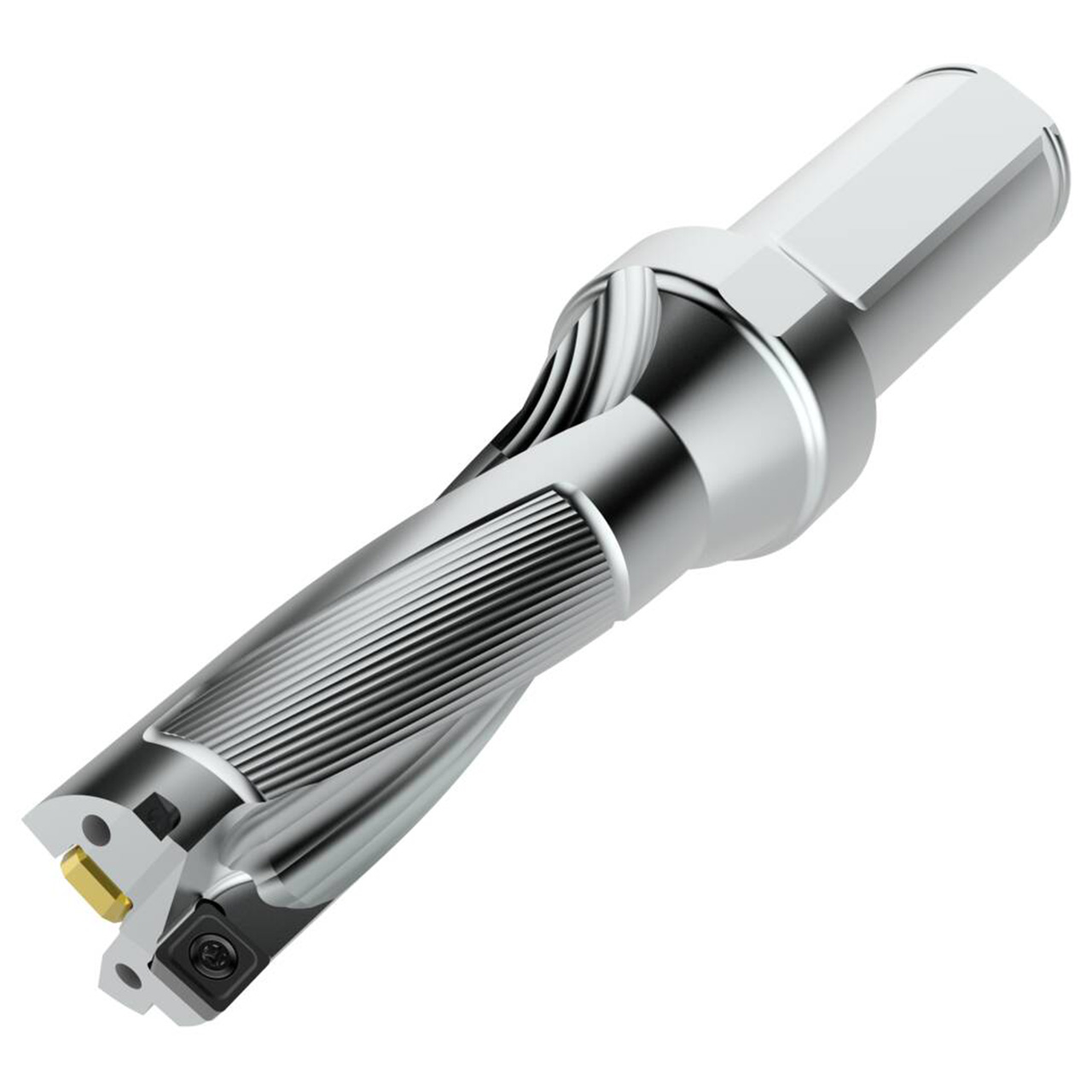

| Product Type | Indexable Insert Drill |
