Product Specifications
| Manufacturer Part Number | 03092084 |
| Cutting Diameter (mm) | 51.00mm |
| Connection Bore Diameter (mm) | 22.00mm |
| Contact Surface Diameter Machine Side (mm) | 47.00mm |
| Maximum Cutting Diameter (mm) | 63.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 124.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 114.00mm |
| Functional Length (mm) | 40.00mm |
| Maximum Depth of Cut (mm) | 6.00mm |
| Depth of Key Way (mm) | 6.30mm |
| Keyway Width (mm) | 10.40mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -10 Degree |
| Rake Radial Angle (Degree) | -10 Degree |
| Rake Orthogonal Angle (Degree) | -10 Degree |
| Axial Rake Angle (Degree) | -6 Degree |
| Maximum Ramping Angle (Degree) | 0.47 Degree |
| Maximum Rotational Speed (rpm) | 11200 rpm |
| Insert Shape Code | R |
| Shank Type | Arbor |

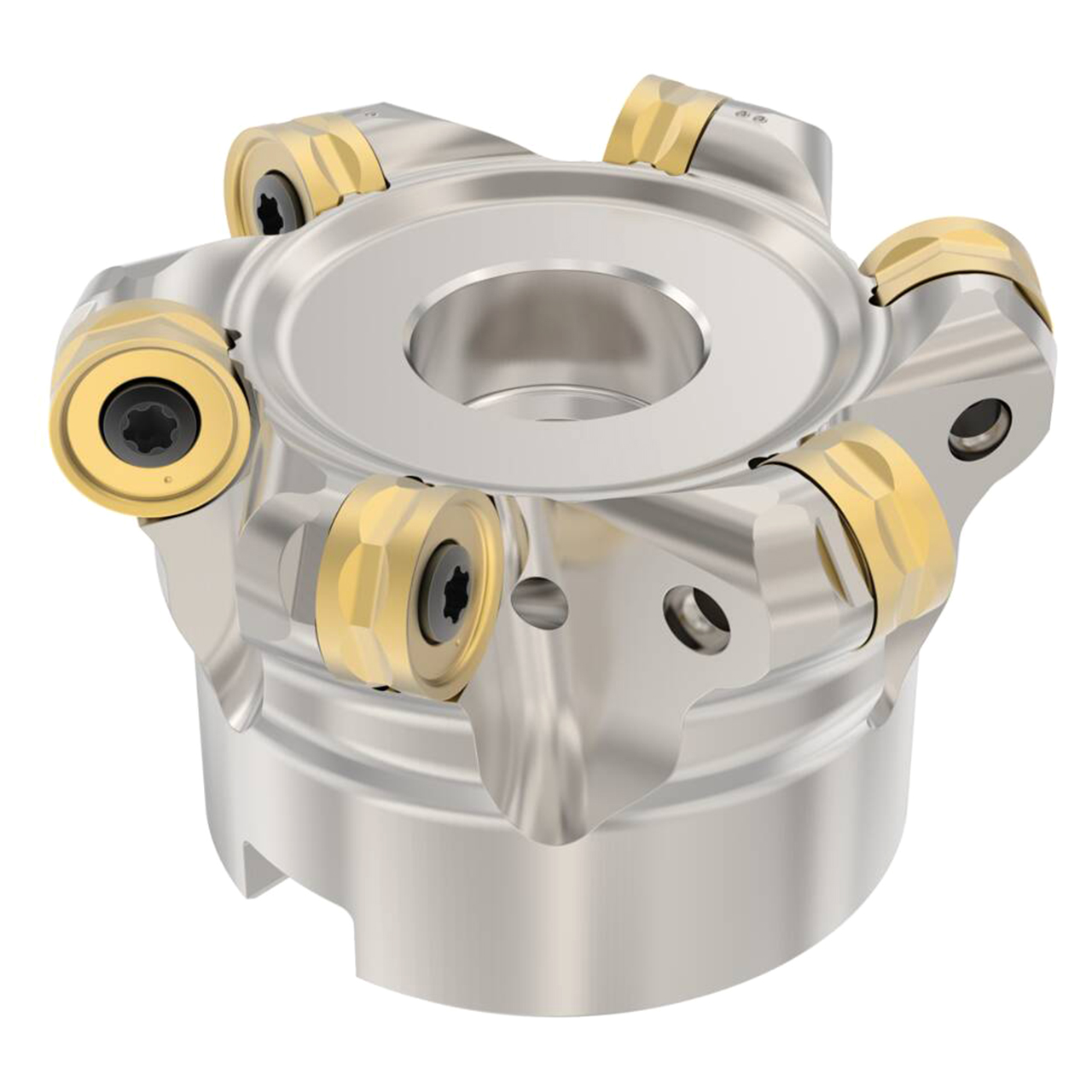

| Product Type | Double Sided Copy Mill Round Insert |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
2"
Cutting Diameter (Decimal Inch):
2.0079"
Cutting Diameter (mm):
51.00mm
Maximum Depth of Cut (Inch):
17/72"
Maximum Depth of Cut (Decimal Inch):
0.2362"
Maximum Depth of Cut (mm):
6.00mm
