Product Specifications
| Manufacturer Part Number | 03119971 |
| Body Diameter 1 (Decimal Inch) | 0.906" |
| Body Diameter 1 (mm) | 23.00mm |
| Body Diameter 2 (Decimal Inch) | 0.669" |
| Body Diameter 2 (mm) | 17.00mm |
| Body Diameter 3 (Decimal Inch) | 1.024" |
| Body Diameter 3 (mm) | 26.00mm |
| Flange Diameter (Decimal Inch) | 1.496" |
| Flange Diameter (mm) | 38.00mm |
| Coolant Entry Diameter (Decimal Inch) | 0.236" |
| Coolant Entry Diameter (mm) | 6.00mm |
| Body Length 1 (Decimal Inch) | 1.378" |
| Body Length 1 (mm) | 35.00mm |
| Protruding Length (Decimal Inch) | 1.772" |
| Protruding Length (mm) | 45.00mm |
| Overall Length (Decimal Inch) | 3.248" |
| Overall Length (mm) | 82.50mm |
| Connection Retention Knob Thread Size | 1-8 UNC |
| Body Half Taper Angle Degree) | 30 Degree |
| Driving Key (mm) | 30.00mm |
| Driving Key (Decimal Inch) | 1.181" |

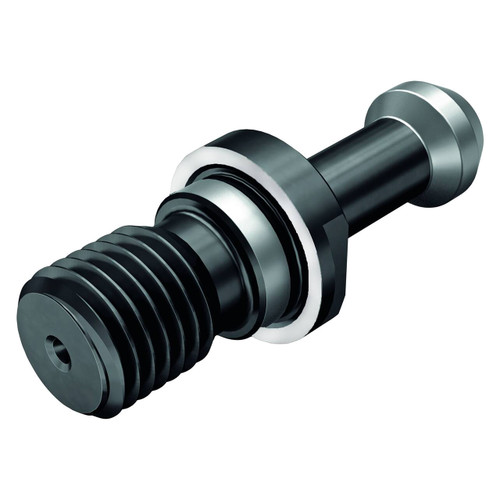

| Product Type | Retention Knob |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
1/2"";Inscribed Circle (Decimal Inch)=0.5000""""
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"";Thickness (Decimal Inch)=0.1870""""
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/64"";Corner Radius (Decimal Inch)=0.0080""""
Corner Radius (mm):
0.20mm
interval quantity:
1
