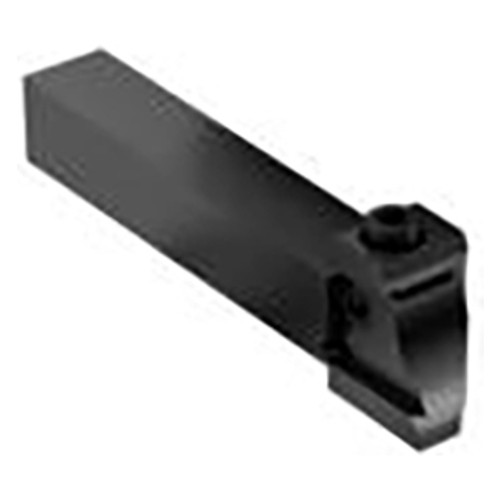

Seco Tools 03128628 | L150.10-0625-15JETI Indexable CutOff Blade Tool Block

$219.00 $212.43
(You save $6.57)
Brand:
Seco Tools
Insert Cutting Direction:
Left
interval quantity:
1
SKU:
23286083
UPC:
Weight:
0.55 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Seco Tools 03128628 | L150.10-0625-15JETI Indexable CutOff Blade Tool Block

Product Specifications
Manufacturer Part Number03128628
Shank Width (Decimal Inch)0.625"
Shank Width (mm)15.88mm
Maximum Cutting Depth (Decimal Inch)0.748"
Maximum Cutting Depth (mm)19.00mm
Height of Tool Holder Shank (Decimal Inch)0.625"
Height of Tool Holder Shank (mm)15.88mm
Functional Length (Decimal Inch)1.339"
Functional Length (mm)34.00mm
Shank Length (Decimal Inch)3.150"
Shank Length (mm)80.00mm
Overall Length (Decimal Inch)4.488"
Overall Length (mm)114.00mm
Coolant Supply Property1
Cutting DirectionLeft Hand
Machine Side GroupSquare shank
Shank TypeSquare shank
Version (Internal/External/Both)External
Product TypeIndexable CutOff Blade Tool Block
