| Manufacturer Part Number | 03134589 |
| Contact Surface Diameter Machine Side (Decimal Inch) | 3.150" |
| Contact Surface Diameter Machine Side (mm) | 80.00mm |
| Maximum Tool Changer Interference Diameter (Decimal Inch) | 4.055" |
| Maximum Tool Changer Interference Diameter (mm) | 103.00mm |
| Functional Height (Decimal Inch) | 0.984" |
| Functional Height (mm) | 25.00mm |
| Functional Length (Decimal Inch) | 1.772" |
| Functional Length (mm) | 45.00mm |
| Protruding Length (Decimal Inch) | 1.969" |
| Protruding Length (mm) | 50.00mm |
| Overall Height (Decimal Inch) | 3.228" |
| Overall Height (mm) | 82.00mm |
| Overall Width (Decimal Inch) | 3.228" |
| Overall Width (mm) | 82.00mm |
| Functional Width (Decimal Inch) | 1.614" |
| Functional Width (mm) | 41.00mm |
| Machine Side Group | Capto |
| Radial Body Height (Decimal Inch) | 1.457" |
| Radial Body Width (Decimal Inch) | 1.614" |
| Radial Body Width (mm) | 41.00mm |
| Shank Type | Seco-Capto |
| Version (Internal/External/Both) | External |

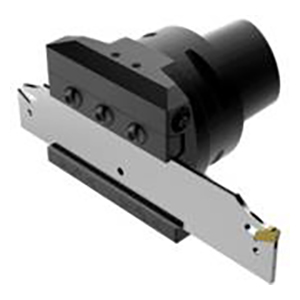

| Product Type | Indexable Cut-Off Blade for Tool Block |
