Product Specifications
| Manufacturer Part Number | 03167768 |
| Cutting Diameter (mm) | 200.00mm |
| Diameter Bolt Circle 1 (mm) | 101.60mm |
| Connection Bore Diameter (mm) | 60.00mm |
| Contact Surface Diameter Machine Side (mm) | 130.00mm |
| Maximum Cutting Diameter (mm) | 224.00mm |
| Functional Length (mm) | 80.00mm |
| Maximum Depth of Cut (mm) | 9.00mm |
| Depth of Key Way (mm) | 14.00mm |
| Keyway Width (mm) | 25.70mm |
| Coolant Entry Style Code | 1 |
| Coolant Pressure | bar |
| Cutting Pitch Density | Normal |
| Coolant Exit Style Code | 2 |
| Rake Radial Angle (Degree) | -7 Degree |
| Rake Radial Angle (Degree) | -7 Degree |
| Rake Orthogonal Angle (Degree) | -9.12 Degree |
| Axial Rake Angle (Degree) | -6 Degree |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 48 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 48 Degree |
| Maximum Rotational Speed (rpm) | 2700 rpm |
| Insert Shape Code | S |
| Shank Type | Arbor |

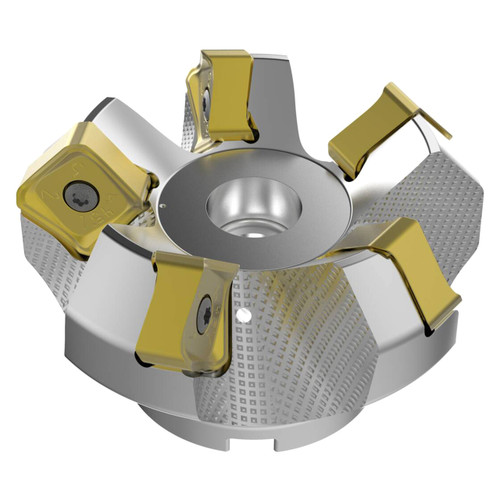

| Product Type | Double QuattroMill Face Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Maximum Depth of Cut (Inch):
17/48"
Maximum Depth of Cut (Decimal Inch):
0.3543"
Maximum Depth of Cut (mm):
9.00mm
interval quantity:
1
