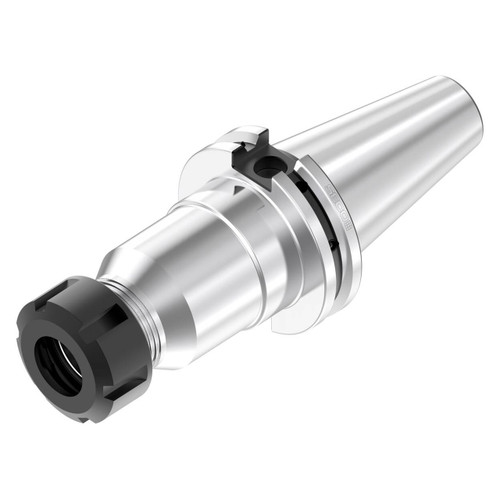

Product Specifications
| Manufacturer Part Number | 03201474 |
| Body Diameter 1 (Decimal Inch) | 1.102" |
| Body Diameter 1 (mm) | 28.00mm |
| Body Diameter 2 (Decimal Inch) | 1.087" |
| Body Diameter 2 (mm) | 27.60mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.020" |
| Minimum Connection Bore Diameter (mm) | 0.50mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.394" |
| Maximum Connection Bore Diameter (mm) | 10.00mm |
| Body Length (Decimal Inch) | 3.250" |
| Body Length (mm) | 82.55mm |
| Functional Length (Decimal Inch) | 2.661" |
| Functional Length (mm) | 67.60mm |
| Minimum Functional Length (Decimal Inch) | 0.457" |
| Protruding Length (Decimal Inch) | 4.000" |
| Protruding Length (mm) | 101.60mm |
| Overall Length (Decimal Inch) | 6.687" |
| Overall Length (mm) | 169.85mm |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 18000 rpm |
| Product Type | Collet Chuck |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
1/2"";Inscribed Circle (Decimal Inch)=0.5000""""
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"";Thickness (Decimal Inch)=0.1870""""
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/64"";Corner Radius (Decimal Inch)=0.0080""""
Corner Radius (mm):
0.20mm
interval quantity:
1
