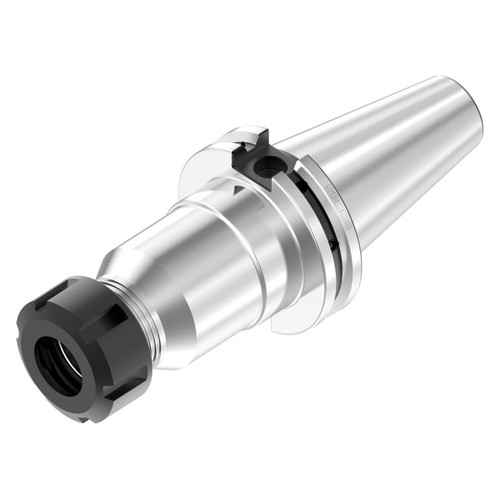

| Manufacturer Part Number | 03201477 |
| Body Diameter 1 (Decimal Inch) | 1.969" |
| Body Diameter 1 (mm) | 50.00mm |
| Body Diameter 2 (Decimal Inch) | 1.750" |
| Body Diameter 2 (mm) | 44.45mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.079" |
| Minimum Connection Bore Diameter (mm) | 2.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.787" |
| Maximum Connection Bore Diameter (mm) | 20.00mm |
| Body Length (Decimal Inch) | 2.250" |
| Body Length (mm) | 57.15mm |
| Functional Length (Decimal Inch) | 1.071" |
| Functional Length (mm) | 27.20mm |
| Protruding Length (Decimal Inch) | 3.000" |
| Protruding Length (mm) | 76.20mm |
| Overall Length (Decimal Inch) | 5.687" |
| Overall Length (mm) | 144.45mm |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 18000 rpm |
| Product Type | Collet Chuck |
