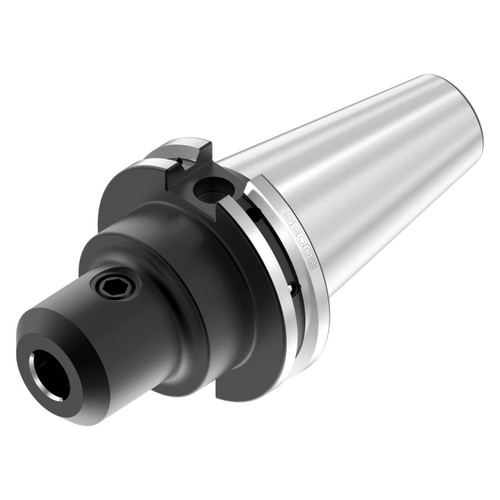

Seco Tools 03201499 | CAT40ADB-EM0.375-2.000 1.340" Diameter x 4.687" OAL End Mill Holder

$132.00 $95.04
(You save $36.96)
Brand:
Seco Tools
Hole Diameter (Decimal Inch):
1.3400"
interval quantity:
1
SKU:
55075118
UPC:
Weight:
2.43 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Seco Tools 03201499 | CAT40ADB-EM0.375-2.000 1.340" Diameter x 4.687" OAL End Mill Holder

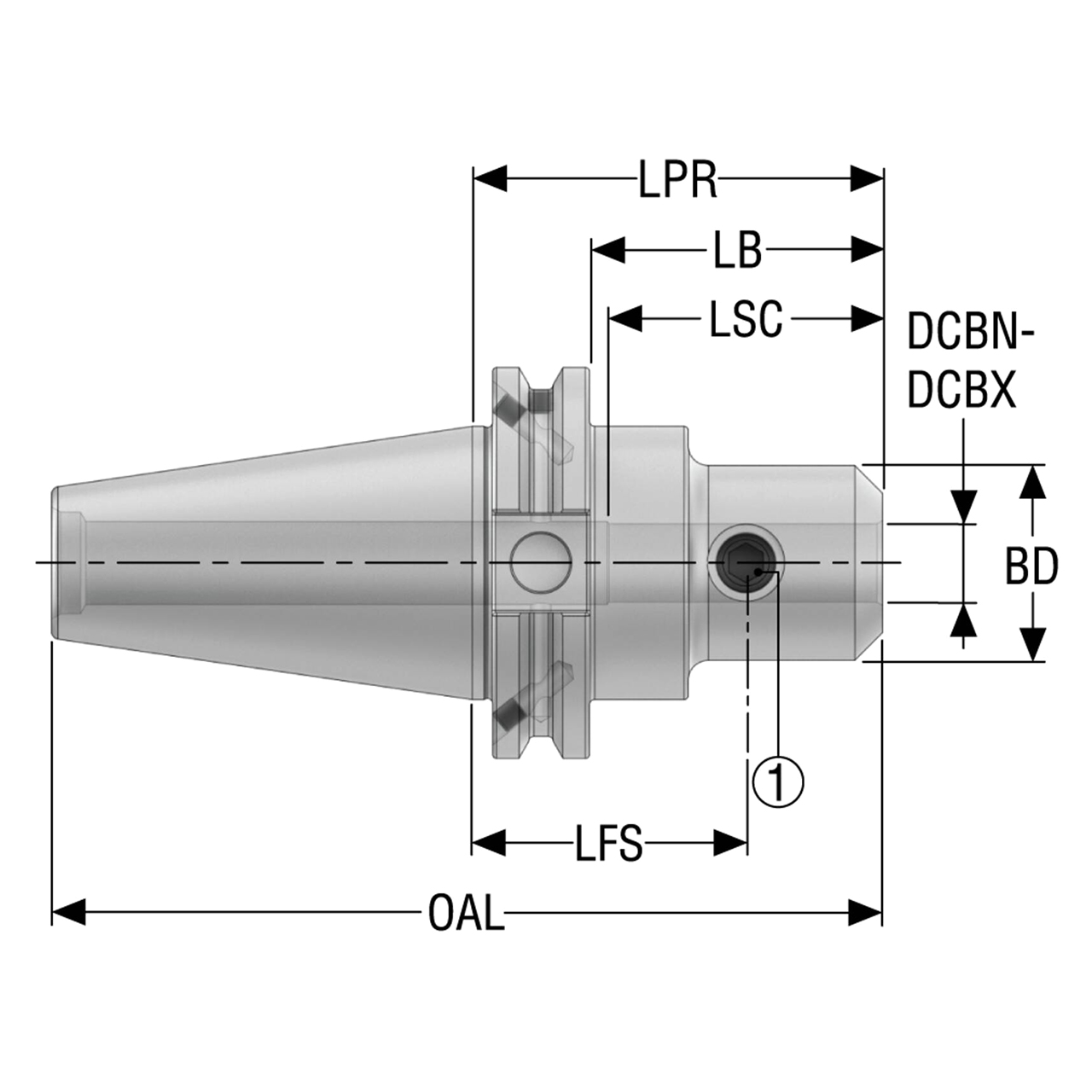

Product Specifications
Manufacturer Part Number03201499
Body Diameter (Decimal Inch)1.340"
Body Diameter (mm)34.04mm
Minimum Connection Bore Diameter (Decimal Inch)0.375"
Minimum Connection Bore Diameter (mm)9.52mm
Maximum Connection Bore Diameter (Decimal Inch)0.375"
Maximum Connection Bore Diameter (mm)9.52mm
Body Length (Decimal Inch)1.250"
Body Length (mm)31.75mm
Functional Length Secondary (Decimal Inch)1.250"
Functional Length Secondary (mm)31.75mm
Protruding Length (Decimal Inch)2.000"
Protruding Length (mm)50.80mm
Clamping Length (Decimal Inch)1.500"
Clamping Length (mm)38.10mm
Overall Length (Decimal Inch)4.687"
Overall Length (mm)119.05mm
Data Chip Provision1
Maximum Rotational Speed (rpm)18000 rpm
Product TypeEnd Mill Holder
