Product Specifications
| Manufacturer Part Number | 03211188 |
| Body Diameter 1 (Decimal Inch) | 1.929" |
| Body Diameter 1 (mm) | 49.00mm |
| Connection Bore Diameter (Decimal Inch) | 0.787" |
| Connection Bore Diameter (mm) | 20.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.236" |
| Minimum Connection Bore Diameter (mm) | 6.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.787" |
| Maximum Connection Bore Diameter (mm) | 20.00mm |
| Body Length (Decimal Inch) | 2.323" |
| Body Length (mm) | 59.00mm |
| Protruding Length (Decimal Inch) | 3.347" |
| Protruding Length (mm) | 85.00mm |
| Overall Length (Decimal Inch) | 4.606" |
| Overall Length (mm) | 117.00mm |
| Connection Bore Depth (mm) | 60.00mm |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 15000 rpm |

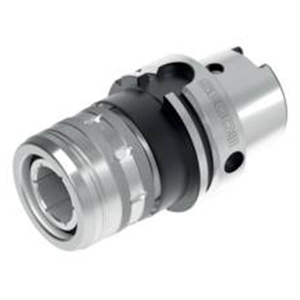

| Product Type | Milling Chuck |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Body Diameter (Inch):
1-13/14"
Body Diameter (Decimal Inch):
1.9290"
Body Diameter (mm):
49.00mm
Body Length (Inch):
2-21/65"
Body Length (Decimal Inch):
2.3230"
Body Length (mm):
59.00mm
interval quantity:
1
