| Manufacturer Part Number | 03211217 |
| Body Diameter 1 (Decimal Inch) | 1.929" |
| Body Diameter 1 (mm) | 49.00mm |
| Body Diameter 2 (Decimal Inch) | 2.750" |
| Body Diameter 2 (mm) | 69.85mm |
| Connection Bore Diameter (Decimal Inch) | 0.750" |
| Connection Bore Diameter (mm) | 19.05mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.236" |
| Minimum Connection Bore Diameter (mm) | 6.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.750" |
| Maximum Connection Bore Diameter (mm) | 19.05mm |
| Thread Diameter Size | UNF 5/8" |
| Body Length (Decimal Inch) | 1.560" |
| Body Length (mm) | 39.62mm |
| Functional Length (Decimal Inch) | 0.717" |
| Functional Length (mm) | 18.21mm |
| Minimum Functional Length (Decimal Inch) | 0.520" |
| Protruding Length (Decimal Inch) | 3.000" |
| Protruding Length (mm) | 76.20mm |
| Overall Length (Decimal Inch) | 7.006" |
| Overall Length (mm) | 177.95mm |
| Connection Bore Depth (mm) | 62.99mm |
| Keyway Width (Decimal Inch) | 0.012" |
| Keyway Width (mm) | 0.31mm |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 15000 rpm |

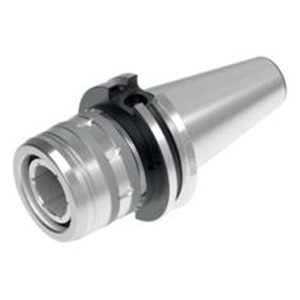

| Product Type | Milling Chuck |
