Seco Tools 03272878 | XOMX1806 Size x 0.158" Radius x 0.251" Thickness 2 Cutting Edge Carbide Square Shoulder Milling Insert

$35.30 $27.18
(You save $8.12)
Brand:
Seco Tools
Material:
Carbide
Thickness (Inch):
1/4"
Thickness (Decimal Inch):
0.2510"
Thickness (mm):
6.38mm
interval quantity:
10
SKU:
23287095
UPC:
Weight:
0.02 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping
Seco Tools 03272878 | XOMX1806 Size x 0.158" Radius x 0.251" Thickness 2 Cutting Edge Carbide Square Shoulder Milling Insert

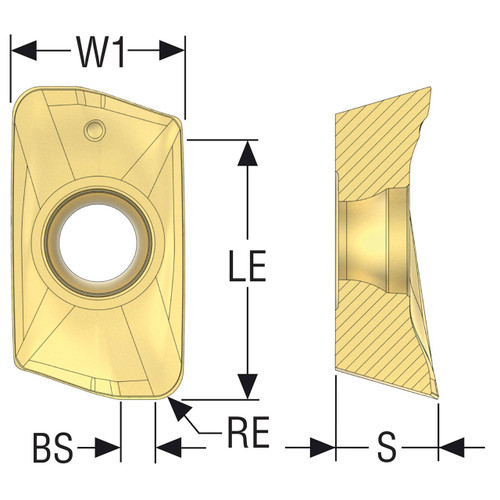

Product Specifications
Manufacturer Part Number03272878
Fixing Hole Diameter (Decimal Inch)0.197"
Fixing Hole Diameter (mm)5.00mm
Wiper Edge Length (Decimal Inch)0.032"
Wiper Edge Length (mm)0.80mm
Cutting Edge Effective Length (Decimal Inch)0.669"
Cutting Edge Effective Length (mm)17.00mm
Insert Width (Decimal Inch)0.441"
Insert Width (mm)11.20mm
Corner Radius (Decimal Inch)0.158"
Corner Radius (mm)4.00mm
Insert Thickness (Decimal Inch)0.251"
Insert Thickness (mm)6.38mm
Clearance Angle Major (Degree)15 Degree
Cutting Edge Count2
Cutting Geometry TypeME
Cutting Geometry Type TechnicalME13
Pocket Seat Code of The CutterXO.X1806
Insert Size And ShapeXOMX1806
Insert Rake Angle (Degree)24 Degree
Insert HandRight Hand
MaterialCarbide
Product TypeSquare Shoulder Milling Insert

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
