| Manufacturer Part Number | 03273259 |
| Fixing Hole Diameter (Decimal Inch) | 0.221" |
| Fixing Hole Diameter (mm) | 5.60mm |

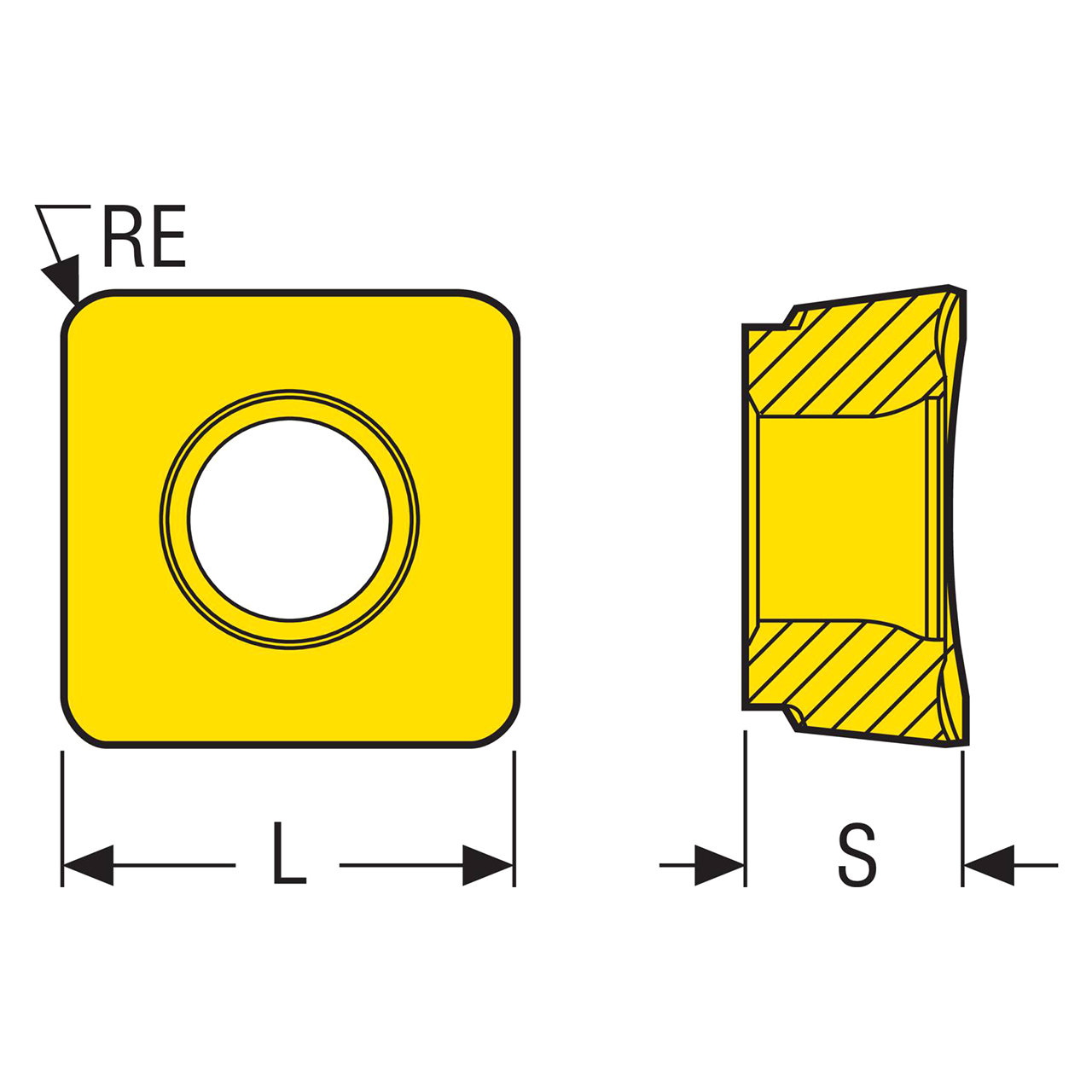

| Inscribed Circle Diameter (Decimal Inch) | 0.500" |
| Inscribed Circle Diameter (mm) | 12.70mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.453" |
| Cutting Edge Effective Length (mm) | 11.50mm |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.500" |
| Theoretical Cutting Edge Length (mm) | 12.70mm |
| Corner Radius (Decimal Inch) | 0.047" |
| Corner Radius (mm) | 1.20mm |
| Insert Thickness (Decimal Inch) | 0.250" |
| Insert Thickness (mm) | 6.35mm |
| Cutting Edge Count | 4 |
| Clearance Angle Major (Degree) | 7 Degree |
| Insert Rake Angle (Degree) | 15 Degree |
| Insert Hand | Neutral |
| Cutting Geometry Type | M |
| Cutting Geometry Type Technical | M14 |
| Pocket Seat Code of The Cutter | SC.T1206 |
| Insert Size And Shape | SCET1206 |
| Insert Shape Code | S |
| Material | Carbide |
| Product Type | Milling Insert |
