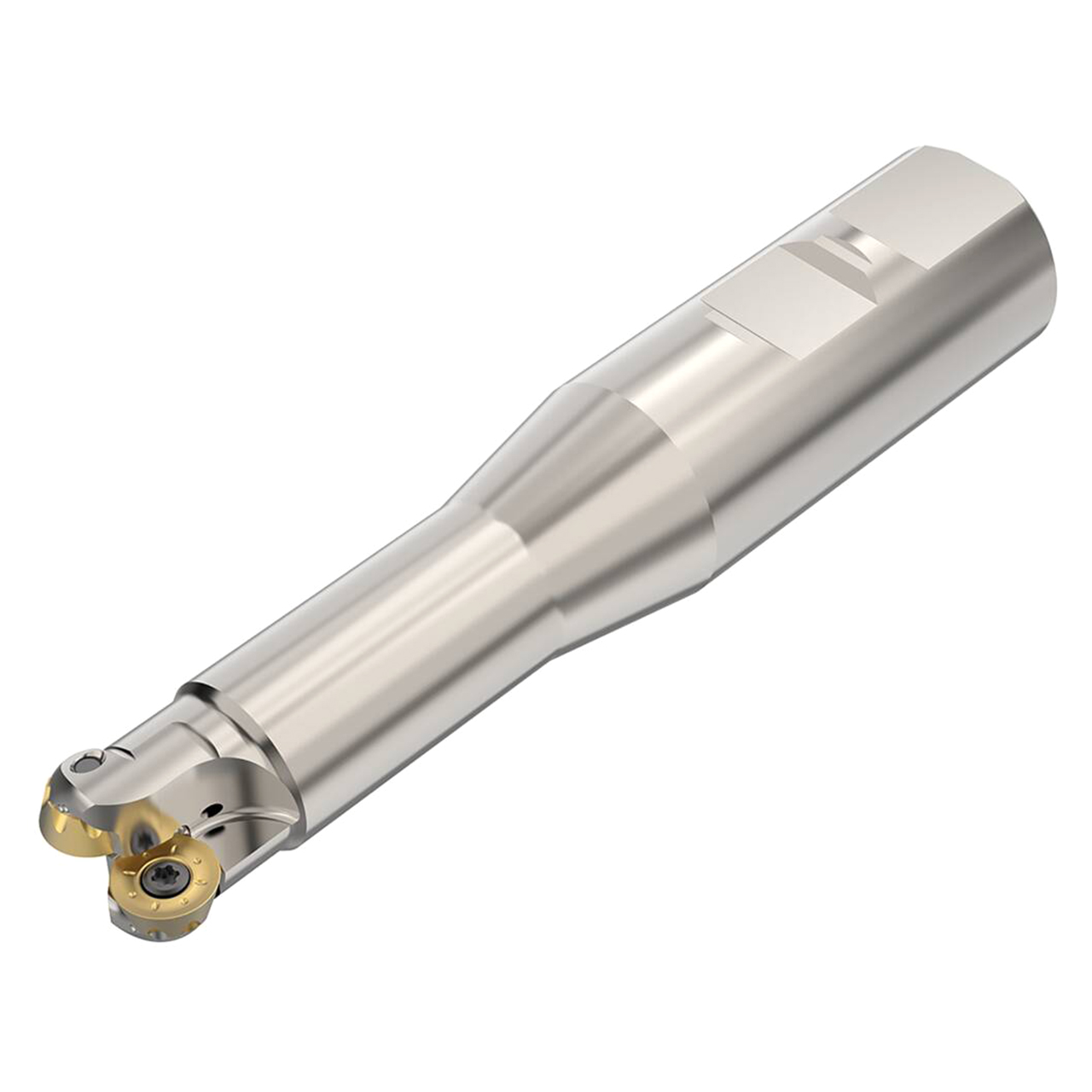

Product Specifications
| Manufacturer Part Number | 03278800 |
| Cutting Diameter (mm) | 10.00mm |
| Connection Diameter Machine Side (mm) | 25.00mm |
| Maximum Cutting Diameter (mm) | 20.00mm |
| Shank Diameter (mm) | 25.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 38.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 30.00mm |
| Functional Length (mm) | 94.00mm |
| Protruding Length (mm) | 70.00mm |
| Shank Length (mm) | 55.50mm |
| Overall Length (mm) | 125.50mm |
| Maximum Depth of Cut (mm) | 5.00mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | 0.6 Degree |
| Rake Radial Angle (Degree) | 0.6 Degree |
| Rake Orthogonal Angle (Degree) | 0.6 Degree |
| Maximum Ramping Angle (Degree) | 90 Degree |
| Maximum Rotational Speed (rpm) | 27400 rpm |
| Insert Shape Code | R |
| Shank Type | Weldon |
| Product Type | Indexable Copy End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
