Seco Tools 03280809 |CCGT060204F-AL 0.250" Inscribed Circle Diameter x 0.016" Corner Radius x 0.094" Thickness 2 Cutting Edge Carbide Turning Insert

$28.40 $21.02
(You save $7.38)
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
1/4"
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0940"
Thickness (mm):
2.38mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0160"
Corner Radius (mm):
0.40mm
interval quantity:
10
SKU:
23288028
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout
Seco Tools 03280809 |CCGT060204F-AL 0.250" Inscribed Circle Diameter x 0.016" Corner Radius x 0.094" Thickness 2 Cutting Edge Carbide Turning Insert

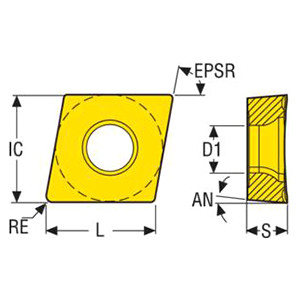

Product Specifications
Manufacturer Part Number03280809
Fixing Hole Diameter (Decimal Inch)0.110"
Fixing Hole Diameter (mm)2.80mm
Inscribed Circle Diameter (Decimal Inch)0.250"
Inscribed Circle Diameter (mm)6.35mm
Cutting Edge Effective Length (Decimal Inch)0.238"
Cutting Edge Effective Length (mm)6.04mm
Theoretical Cutting Edge Length (Decimal Inch)0.254"
Theoretical Cutting Edge Length (mm)6.45mm
Corner Radius (Decimal Inch)0.016"
Corner Radius (mm)0.40mm
Insert Thickness (Decimal Inch)0.094"
Insert Thickness (mm)2.38mm
Cutting Edge Count2
Clearance Angle Major (Degree)7 Degree
Insert Included Angle (Degree)80 Degree
Insert HandNeutral
Insert Size And ShapeCC0602
Insert Shape CodeC
MaterialCarbide
Product TypeTurning Insert

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
