| Manufacturer Part Number | 03290228 |
| Cutting Diameter (mm) | 40.00mm |
| Connection Diameter Machine Side (mm) | 32.00mm |
| Shank Diameter (mm) | 32.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 78.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 65.00mm |
| Protruding Length (mm) | 94.00mm |
| Shank Length (mm) | 113.00mm |
| Overall Length (mm) | 150.00mm |
| Maximum Depth of Cut (mm) | 15.00mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Differential | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -22 Degree |
| Rake Radial Angle (Degree) | -22 Degree |
| Rake Orthogonal Angle (Degree) | -22 Degree |
| Axial Rake Angle (Degree) | -2 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Ramping Angle (Degree) | 0.25 Degree |
| Maximum Rotational Speed (rpm) | 11400 rpm |
| Shank Type | Cylindrical |

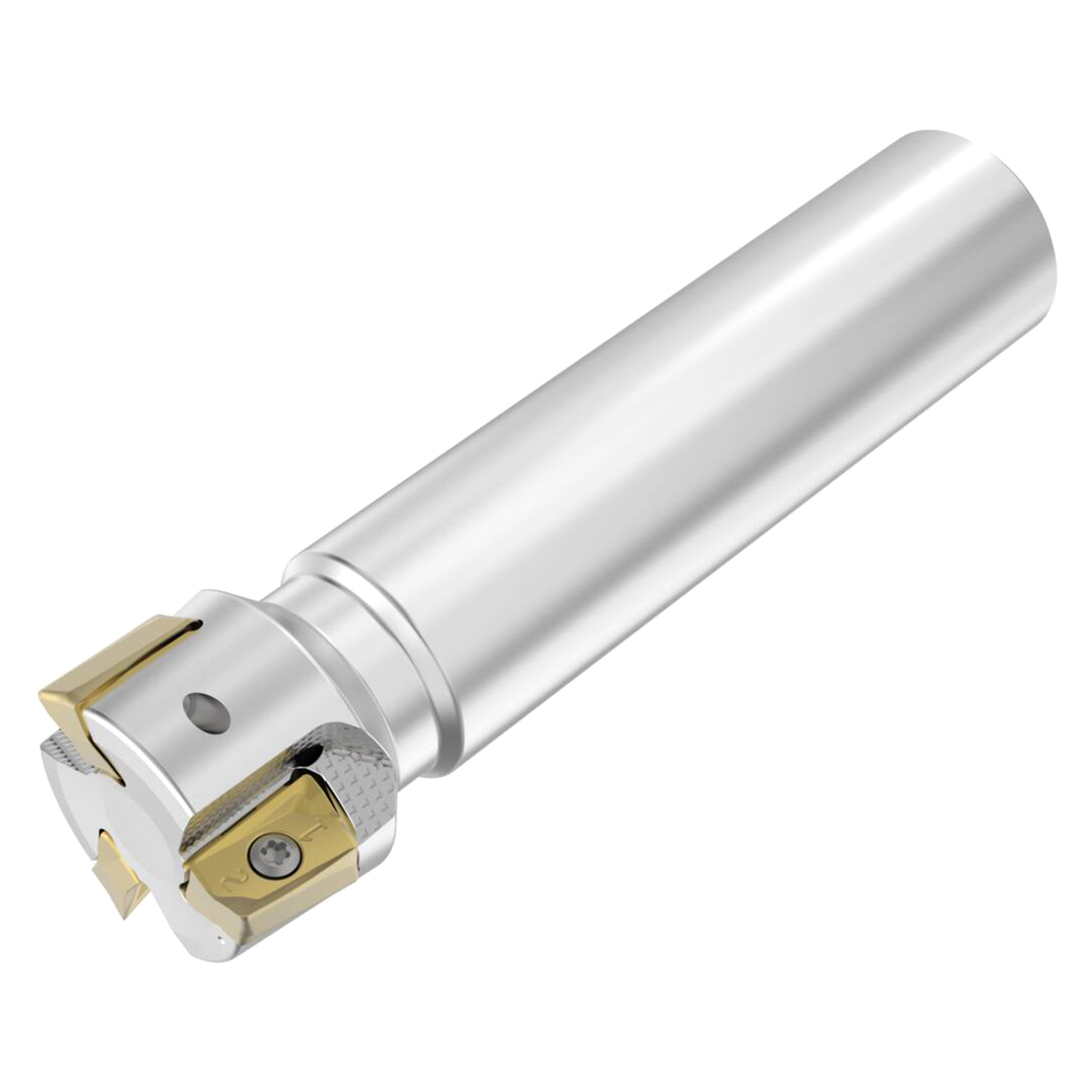

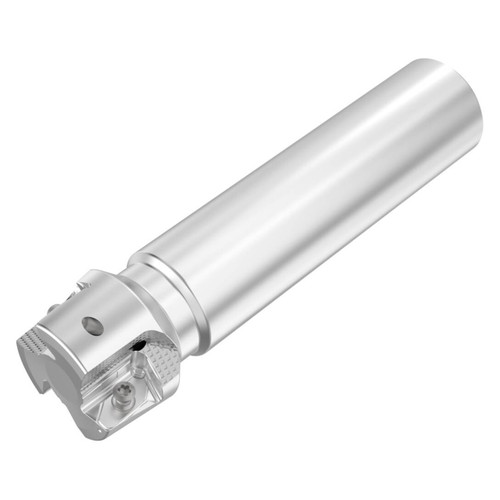

| Product Type | Indexable Square-Shoulder Face Mill |
