Product Specifications
| Manufacturer Part Number | 03290230 |
| Cutting Diameter (Decimal Inch) | 1.250" |
| Cutting Diameter (mm) | 31.75mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.250" |
| Connection Diameter Machine Side (mm) | 31.75mm |
| Shank Diameter (Decimal Inch) | 1.250" |
| Shank Diameter (mm) | 31.75mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 2.402" |
| Maximum Helical Interpolation Hole Diameter (mm) | 61.00mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 1.890" |
| Minimum Helical Interpolation Hole Diameter (mm) | 48.00mm |
| Protruding Length (Decimal Inch) | 3.701" |
| Protruding Length (mm) | 94.00mm |
| Shank Length (Decimal Inch) | 4.449" |
| Shank Length (mm) | 113.00mm |
| Overall Length (Decimal Inch) | 7.677" |
| Overall Length (mm) | 195.00mm |
| Maximum Depth of Cut (mm) | 15.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.591" |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -24.1 Degree |
| Rake Radial Angle (Degree) | -24.1 Degree |
| Rake Orthogonal Angle (Degree) | -24.1 Degree |
| Axial Rake Angle (Degree) | -3 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Ramping Angle (Degree) | 0.35 Degree |
| Maximum Rotational Speed (rpm) | 11400 rpm |
| Shank Type | Cylindrical |

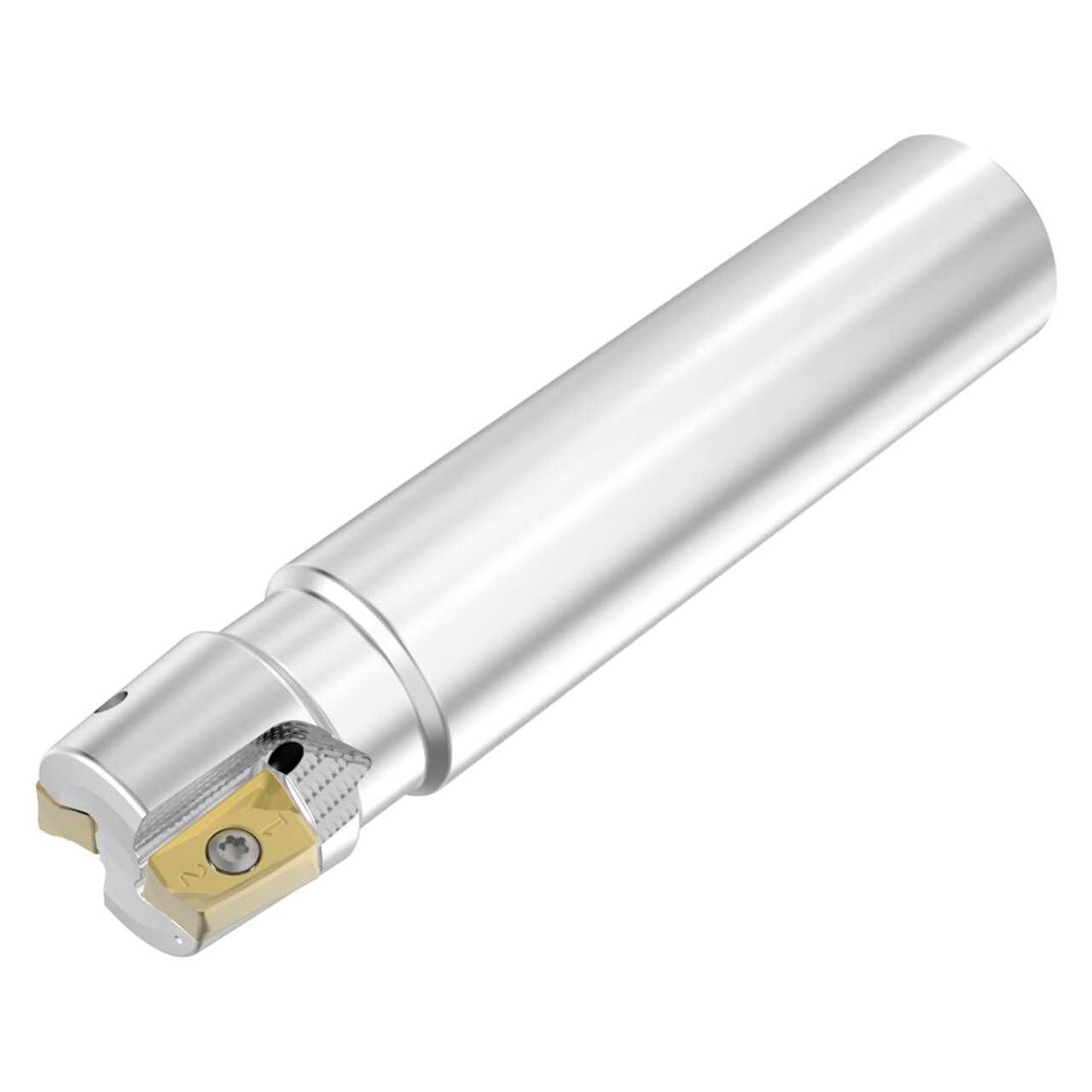

| Product Type | Indexable Square-Shoulder Face Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
1-1/4"
Cutting Diameter (Decimal Inch):
1.2500"
Cutting Diameter (mm):
31.75mm
Maximum Depth of Cut (Inch):
13/22"
Maximum Depth of Cut (Decimal Inch):
0.5906"
Maximum Depth of Cut (mm):
15.00mm
